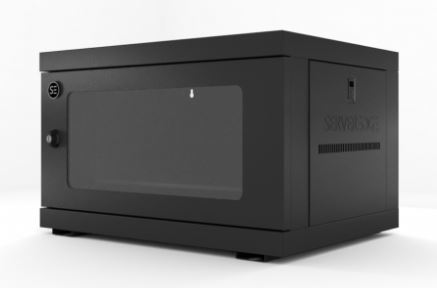

Serveredge CBN-6RU-64WM 6RU Wallmount Rack Enclosure - Fully Assembled

Web ID: 750

6RU Fully Assembled Wall Mounted Cabinet - 600W x 450D x 370H Toughened Glass Door, Quick Release Lockable Side Panel, L-Shaped Rails, Cut Out Slots for Fans, 20 X Cage Nuts
Manufacturer PN: CBN-6RU-64WM
Warranty: 1 Year
Manufacturer Website


Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space. This Serveredge rack is made up of sturdy wall mounting bracket and steel frame. Vertical Mounting Rails in the rack are adjustable and can accommodate all standard 19 inch rack equipment. These Serveredge wall mount racks feature a toughened & tempered lockable glass door with perforated side panels to assure a generous airflow to keep your equipment operating safely. Side Panels of this rack are lockable & removable to ensure easy access to the mounted devices. The top and bottom panels of this rack include convenient cable routing ports. The rack ships fully assembled and comes with a 25 Year manufacturer’s product warranty.

* Designed for limited space environments where equipment needs to be secure and out of the way

* Available in various Sizes from 4RU to 18RU with adjustable front vertical rackmount rails

* Locking, reversible front door and locking, removable side panels

* Fully assembled for quick installation

* Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92

* Warranty : 25-year


Installed whole system maximum rack depth (mm) 350
Rack Height 6RU
Shipping Dimensions (WDH/mm)  650 X 500 X 420
Shipping weight (kg) 16.5
Unit Dimensions (WDH/mm)  600 X 450 X 370
Unit weight (kg) 14
Colour  Black
Weight Capacity - Stationary (kg)   80
Grounding lug  Front and Back Door Frames



Free Standing Rack 1
M6 screws 20
M6 cage nuts 20
M6 washers 20
Keys  2
Owner's Manual  1
