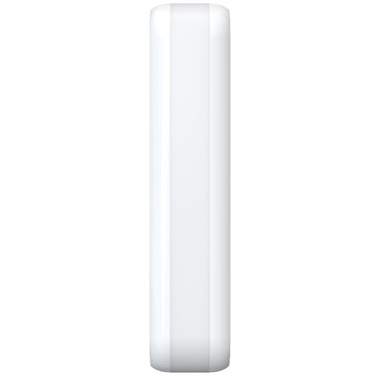

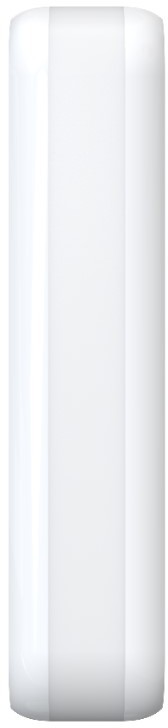

Hikvision DS-PDC10AM-EG2-WB Ax Pro Wireless Outdoor Curtain PIR Detector with Anti-masking

Web ID: 1347

The Hikvision DS-PDC10AM-EG2-WB outdoor curtain PIR detector has two-way wireless communication featuring motion detection, tamper protection, low battery, and RF supervision. It has a solid curtain coverage up to 10m long by 5m high. It is suitable for perimeter protection by setting up a detection curtain along walls or windows. It has a 12kg, wall mounted pet immunity, active IR anti-masking and is fully remote configurable through the Hik-Connect app.
Manufacturer PN: DS-PDC10AM-EG2-WB
Warranty: 3 Year
Manufacturer Website

$76

Hikvision DS-PDC10AM-EG2-WB Ax Pro Wireless Outdoor Curtain PIR Detector with Anti-masking 0

  • Detection Performance
  • Detection Method - Passive Infrared
  • Detection Range -Wall Mount:10m, Ceiling Mount:5m
  • Detection Angle - 5°
  • Detection Zones - 32
  • Detectable Speed - 0.3~2m/s
  • Sensitivity - Auto;Pet
  • White Light Filter - 6500lux
  • Pet Immunity - Wall Mount:12Kg, Ceiling Mount:None
  • Digital Temperature Compensation - Support
  • Creep Zone Protection - Support
  • Anti-masking - Support
  • Feature
  • Digital Processing - Support
  • Sealed Optics - Support
  • Tamper Protection - Front;Rear
  • Environment Temperature Indicator - Support
  • Signal Strength Indicator - Support
  • Directional Detection - Support
  • Interface
  • Power Switch - Power Up Enrolling
  • LED Indicator - Blue(Alarm), Green+Orange(Mask)
  • Transmission
  • Transmission Technology - Tri-X Wireless
  • Transmission Method - Two-Way RF Wireless
  • Transmission Frequency - 433MHz
  • Transmission Security - AES-128 Encryption
  • Transmission Range (Free Space) - 1Km
  • Frequency Hopping - Support
  • Enrolling Method - Power up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery Life - 5 years in work status (being triggered 20 times per day)
  • Power Supply - Battery Powered
  • Battery Type - CR123A × 2
  • Typical Voltage - 3V
  • General
  • Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity - 10% to 90%
  • IP Rating - IP65
  • Dimension(WxHxD) - 29.2mm × 134.4mm × 39.5mm
  • 118.5g
  • Mounting Height - 2 to 3.5m
  • Mounting Method - Wall;Ceiling
  • Application Scenario - Indoor,Outdoor
  • Bracket - L-shaped adapter included
