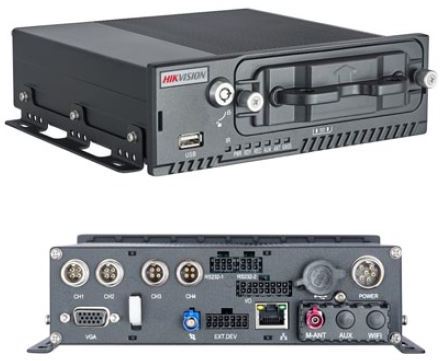

Hikvision DS-M5504HM-T/GPS/3G/4G 4ch HD TVI Mobile DVR - Includes 1TB HDD

Web ID: 756

Hikvision DS-M5504HM-T/GPS/3G/4G 4ch HD TVI Mobile DVR - Includes 1TB HDD
Manufacturer PN: DS-M5504HM-T/GPS/3G/4G
Warranty: 3 Year
Manufacturer Website

DS-M5504HM-T/GPS/3G/4G
4ch HD TVI Mobile DVR - Includes 1TB HDD

Key Features

  • User-friendly GUI providing easy and flexible operations.
  • Pluggable 3G/4G module and 5.8 G Wi-Fi module providing flexible data transmission solutions.
  • Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
  • Hikvision private protocol (4000 protocol) and ONVIF supported.
  • Accepts access of 4-ch TVI cameras with up to 720p/WD1 resolution for each channel.
  • Removable HDD caddy supporting up to 2TB capacity
  • Information collection interfaces collecting driving information such as left/right turn, braking, backing up, etc.
  • Specialized aviation connectors ensuring signal stability.
  • Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
  • Battery protection prevents flattening the vehicle battery.
  • Wide-range power input (+9 VDC to +32 VDC).
  • Power-off protection prevents key data loss.
  • Aluminum die-cast chassis with fanless design engineered for mobile working environments.
  • Software-based firewall supported.
  • Connectable to PTZ camera and PTZ control is supported.
  • Supports access via WEB browser.
