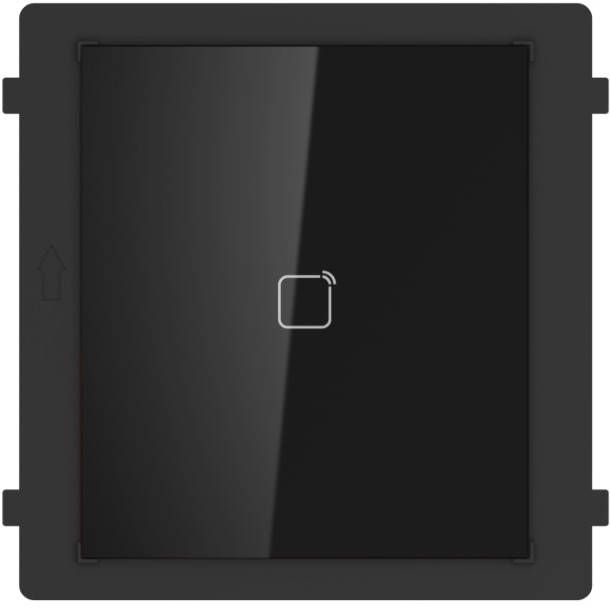

Hikvision DS-KD-M 2nd Gen Intercom Door Station Reader Module

Web ID: 980

The Hikvision DS-KD-M is a card reader module that is designed to suit the 2nd Generation range of IP intercoms.
Manufacturer PN: DS-KD-M
Warranty: 3 Year
Manufacturer Website


2nd Gen Intercom Door Station Reader Module

Key Features

  • Supports unlock the door via swiping cards
  • Supports issuing cards
  • Backlight compensation
  • Easy to expand
  • System Parameters
    Internal card reader:   Built-in Card Reader
    Processor:   Embedded MCU Processor
    Device Interfaces
    Module-connecting:   2(1 Input, 1 Output)
    Card type:   Mifare Card
    Power output:   12VDC(Powered for the other module)
    Power input:   12VDC(Powered by the other module)
    DIP switch:   8
    Installation:   Flush Mounting, Surface Mounting
    Power Consumption:   ≤2W
    Working Humidity:   10% to 95%
    Working Temperature:   -40° C to +60° C (-40° F to 140° F)
    IP Protection Level:   IP65
    Dimensions(L × W × H):   98.5mm×100mm×33.7mm(3.87"×3.95"×1.33")
