Hikvision DS-KB8112-IM 1.3MP Surface Mount IP Intercom Video Door Station

Web ID: 58

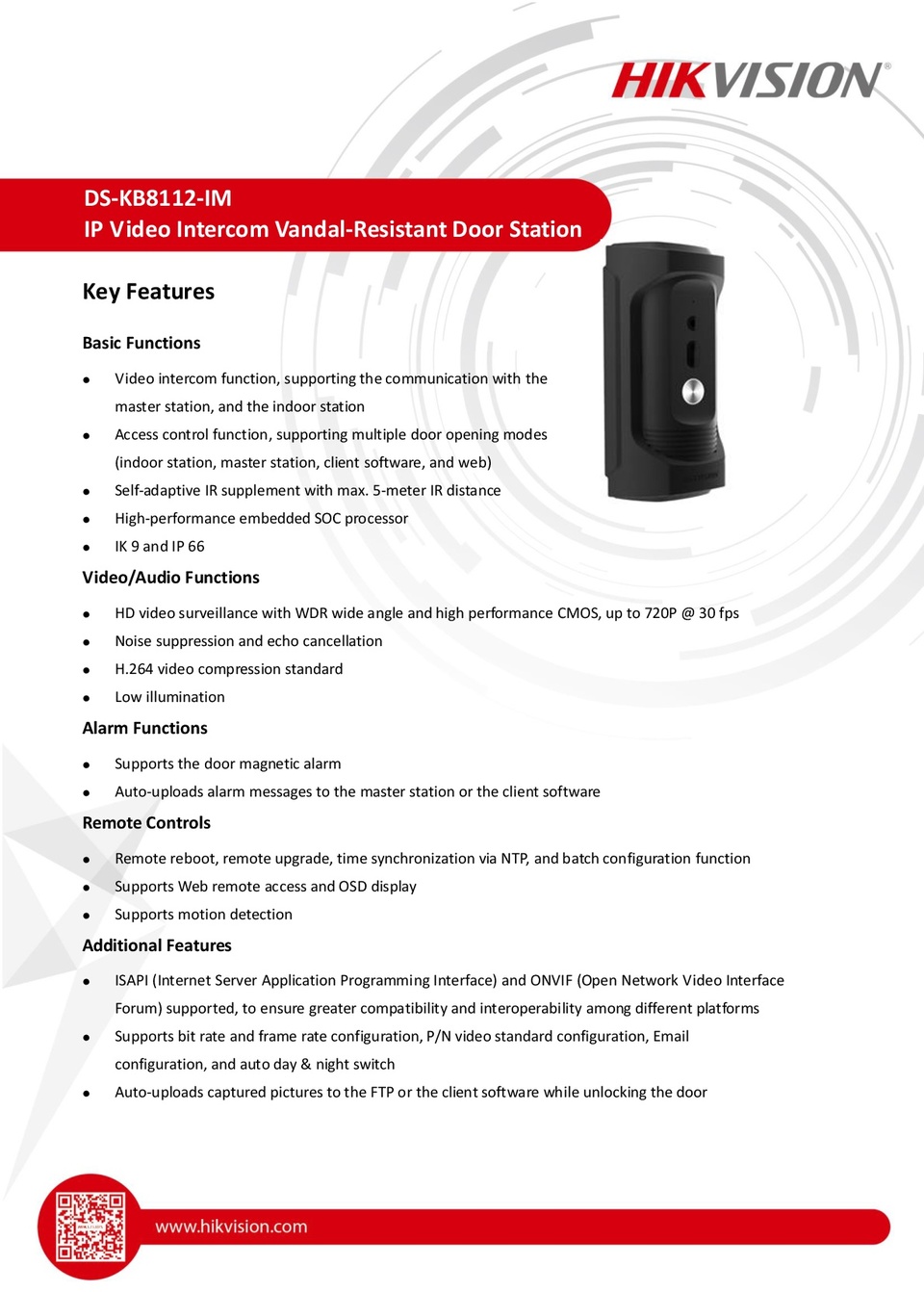

Hikvision DS -KB8112-IM 1.3MP Surface Mount IP Intercom Video Door Station Max. resolution 1280720@30fps, WDR, 80 wide angle. Motion detection supported. Self-adaptive light supplement, IR night vision. 1-ch alarm input, 1-ch alarm output. Noise suppression and echo cancellation. IK09 and IP65 weather resistant
Manufacturer PN: DS-KB8112-IM
Warranty: 3 Year
Manufacturer Website

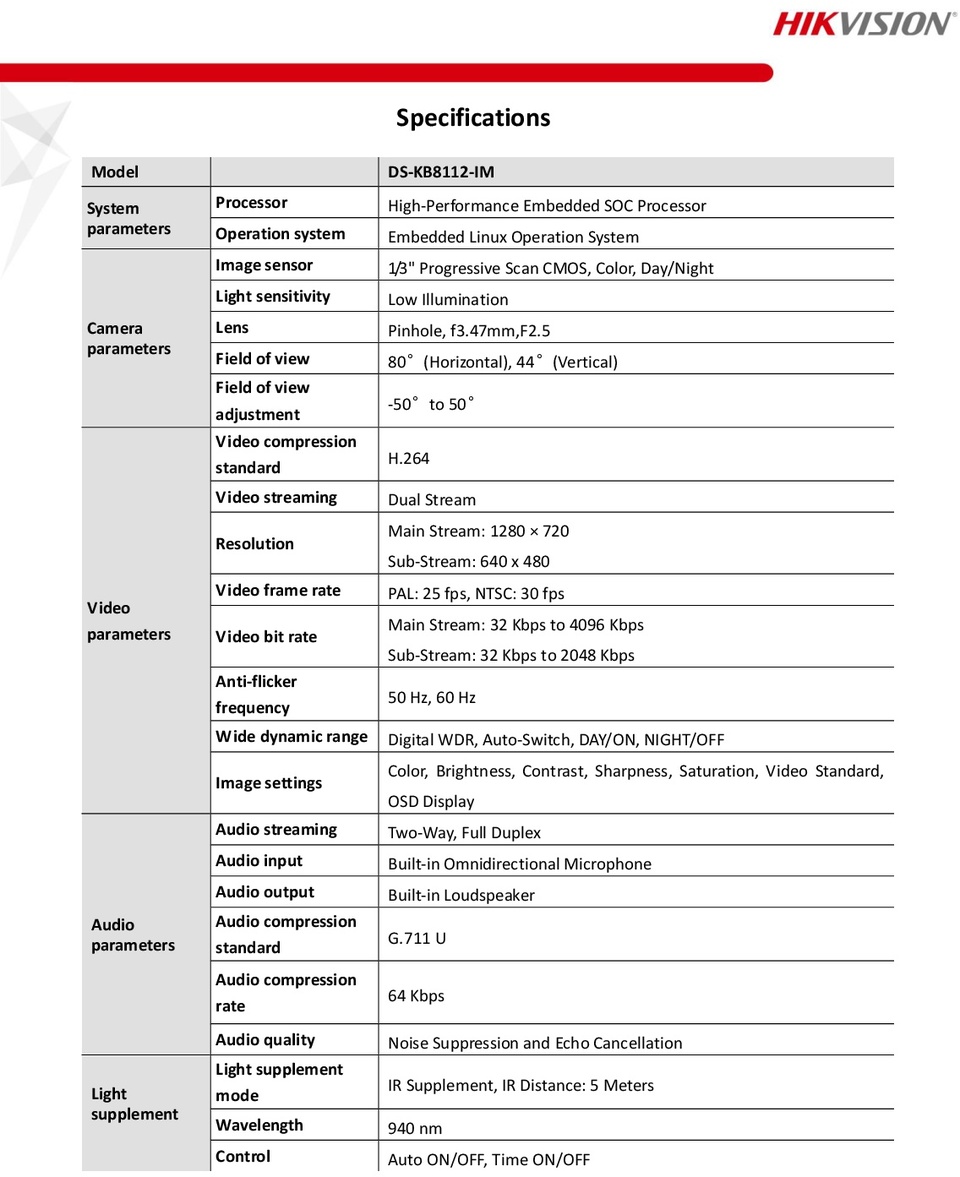

System Parameters
Processor:   High-Performance Embedded SOC Processor
Operation System:   Embedded Linux Operation System
Camera Parameters
Image Sensor:   1/3" Progressive Scan CMOS, Color, Day/Night
Light sensitivity:   Low Illumination
Lens:   Pinhole, f3.47mm,F2.5
Field of view:   80° (Horizontal), 44° (Vertical)
Field of view adjustment:   -50° to 50°
Video Parameters
Video streaming:   Dual Stream
Video Compression Standard:   H.264
Resolution:   Main Stream: 1280 × 720
Sub-Stream: 640 x 480
Video frame rate:   PAL: 25 fps, NTSC: 30 fps
Video bit rate:   Main Stream: 32 Kbps to 4096 Kbps
Sub-Stream: 32 Kbps to 2048 Kbps
Anti-flicker frequency:   50 Hz, 60 Hz
Wide dynamic range:   Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF
Image settings:   Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,OSD Display
Audio Parameters
Audio streaming:   Two-Way, Full Duplex
Audio Input:   Built-in Omnidirectional Microphone
Audio Output:   Built-in Loudspeaker
Audio Compression Standard:   G.711 U
Audio Compression Rate:   64 Kbps
Audio Quality:   Noise Suppression and Echo Cancellation

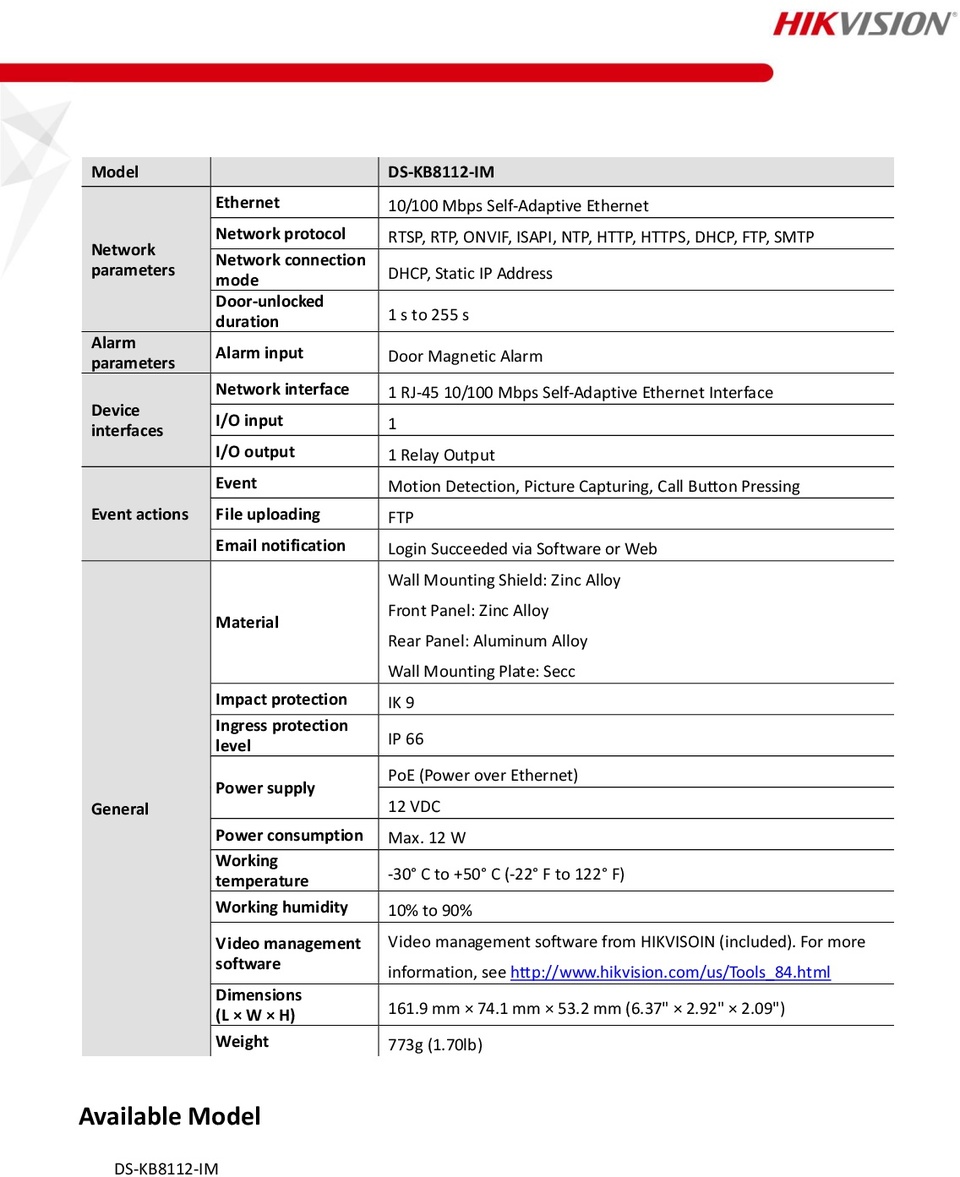

Network Parameters
Ethernet:   10/100 Mbps Self-Adaptive Ethernet
Light Supplement
Light Supplement Mode:   IR Supplement, IR Distance: 5 Meters
Wavelength:   940 nm
Control:   Auto ON/OFF, Time ON/OFF
Alarm Parameters
Alarm Input:   Door Magnetic Alarm
Event actions
Event:   Motion Detection, Picture Capturing, Call Button Pressing
File uploading:   FTP
Email notification:   Login Succeeded via Software or Web
Device Interfaces
Network Interface:   1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
I/O Input:   1
I/O Output:   1 Relay Output
Material:   Wall Mounting Shield: Zinc Alloy
Front Panel: Zinc Alloy
Rear Panel: Aluminum Alloy
Wall Mounting Plate: Secc
Impact protection:   IK 9
Power Supply:   PoE (Power over Ethernet) 12 VDC
Power Consumption:   ≤12 W
Working Temperature:   -30° C to +50° C (-22° F to 122° F)
Working Humidity:   10% to 90%
Video management software :   Video management software from HIKVISOIN (included). For more information, see http://www.hikvision.com/us/Tools_84.html
IP Protection Level:   IP66
Dimensions(L × W × H):   161.9 mm × 74.1 mm × 53.2 mm (6.37" × 2.92" × 2.09")
Weight:   773g (1.70lb)
