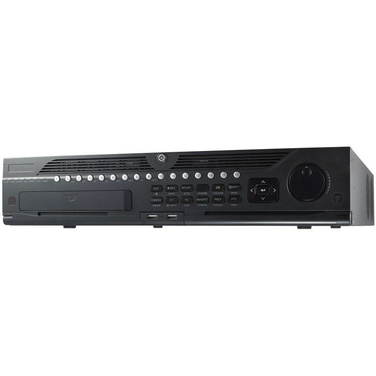

Hikvision DS-9664NI-I8 64CH IP NVR
Web ID: 46
Hikvision's DS-9664NI-I8 is a 64 channel professional network video recorder. Part of Hikvision's I Series NVR range, it houses a 4-core processor and supports H.265 intelligent compression which aims to reduce bandwidth and storage requirements by up to 50%. Additionally, this NVR combines multiple advanced technologies such as audio and video decoding technology, network technology and intelligent technology, all contributing factors in the I Series range running smoother than previous generations. Featuring 8 hard disk drive bays each supporting up to 6TB and RAID and capable of 4K(UHD) video output via HDMI 1 and 1080P via VGA/HDMI 2, this NVR offers up to 12MP resolution recording.
Hikvision's I Series NVRs offer complete HD surveillance experiences for the professional market with this high throughput and reliable unit being ideal for large installations requiring enterprise features.
Manufacturer PN: DS-9664NI-I8
Warranty: 3 Year
Manufacturer Website
DS-9664NI-I8
64CH IP NVR
Key Features
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 2-ch HDMI, 2-ch VGA, HDMI at up to 4K(3840x2160) resolution
- Up to 64 IP cameras can be connected with 320M incoming bandwidth
- Up to 8 SATA interfaces
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
- 3 Year Warranty And Support
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 64-ch | |
| Network | ||
|---|---|---|
| Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled) | |
| Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled) | |
| Remote connection: | 128 | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 2-ch, resolution: HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 2-ch, RCA (2.0Vp-p, 1KΩ) | |
| Synchronous Playback: | 16-ch | |
| Decoding | ||
|---|---|---|
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Capability: | 4-ch@8MP,16-ch@1080P | |
| Hard Disk | ||
|---|---|---|
| SATA: | 8 SATA interfaces for 8 HDDs | |
| Interface Type: | 1 eSATA interface | |
| Capacity: | Up to 6TB capacity for each HDD | |
| Disk array | ||
|---|---|---|
| Array type: | RAID0, RAID1, RAID5, RAID10 | |
| Number of array: | 4 | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | |
| Serial Interface: | RS-232, RS-485, Keyboard | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 | |
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC, 50 to 60 Hz | |
| Consumption(without hard disk and POE): | ≤30 W | |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 2U chassis | |
| Dimensions: | 445 × 470 ×90 mm (17.5"× 18.5" × 3.5") | |
| Weight(without HDD): | ≤ 10 Kg (22 lb) | |
