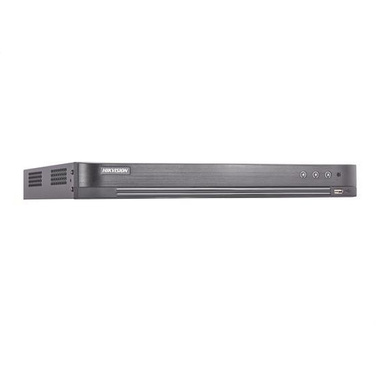

Hikvision DS-7208HUHI-K2 8CH HD-TVI DVR - Includes 3TB Hard Drive

Web ID: 122

Hikvision DS-7208HUHI-K2 8CH HD-TVI DVR - Includes 3TB Hard Drive
Manufacturer PN: DS-7208HUHI-K2
Warranty: 3 Year
Manufacturer Website

$567

DS-7208HUHI-K2
8CH HD-TVI DVR - Includes 3TB Hard Drive

Key Features

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • 8 MP/5MP/4MP HDTVI video input and live view
  • HDMI output at up to 4K (3840 × 2160) resolution
  • Long distance transmission over UTP and coaxial cable
  • 8-ch synchronous playback
Video/Audio Input
Audio Input:   8-ch
Analog and HD-TVI video input:   8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Frame Rate:   Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-10 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   8-ch
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   2 SATA Interfaces
External Interface
Network Interface:   1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:   1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:   1; standard RS-485 serial interface, half-duplex
Alarm Input:   8-ch
Alarm Output:   4-ch
General
Power Supply:   12 VDC
Consumption:   ≤ 20W(without hard disks)
Working Temperature:   -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:   10% to 90%
Dimensions:   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:   ≤ 1.78 kg (3.9 lb)
