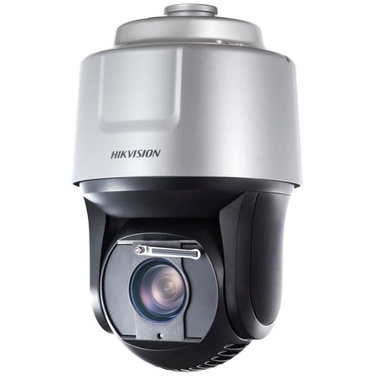

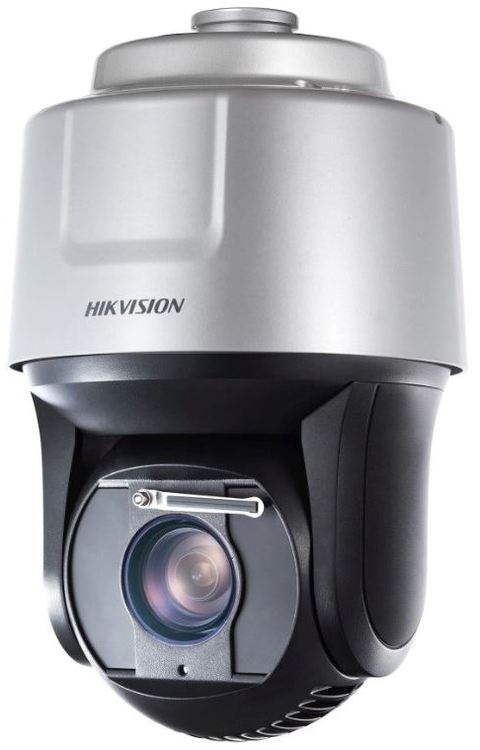

Hikvision DS-2DF8225IH-AELW DarkFighterX 2MP With 25X Optical Zoom & Wiper

Web ID: 260

Hikvision is leading the industry with innovative video surveillance products and solutions, with the introduction of the DarkFighter X series. Using cutting-edge technology, it delivers the next level of performance for night surveillance. The technology can provide colourful, sharp images right down to the lowest light levels of 0.001 lux. The DarkFighter X Series takes inspiration from the way the human eye works. Eyes use different cells to collect colour and brightness information, which the brain then merges. The DarkFighterX cameras take information from an IR sensor (for brightness) and information from a visible light sensor (for colour) and combines them to provide the best of both worlds, one bright full-colour image. The DarkFighterX series includes a PTZ and bullet camera both come with optical defog, 25x optical zoom, 2MP resolution and smart detection. They also boast the H.265+ codec and are weatherproof to IP66 standard.
Manufacturer PN: DS-2DF8225IH-AELW
Warranty: 3 Year
Manufacturer Website


DarkFighterX 2MP With 25X Optical Zoom & Wiper

Key Features

  • Dual sensors - 2 x 1/2.8" CMOS
  • 2 megapixel - 1080P @25fps/30fps
  • Color: 0.001lux/F1.5, B/W: 0.0001ux/F1.5
  • H.265+/H.265/H.264+/H.264/MJPEG
  • Wiper
  • 200m infrared
  • 120dB wide dynamic range
  • Pan range: 360 degrees endless
  • Tilt range: -20 degrees~90 degrees(Auto Flip)
  • Pan speed: 0.1 degrees ~160 degrees/s
  • Tilt speed: 0.1 degrees ~ 120 degrees/s
  • Optical zoom:25x, focus: 4.8-20mmv
  • Supports SD/SDXC card up to 128GB
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 1920(H)x1080(V)
Signal System: | PAL/NTSC
Minimum Illumination: | Color: 0.001 Lux @(F1.5, AGC ON)
B/W: 0.0001 Lux @(F1.5, AGC ON)
0 Lux with IR
White Balance: | Auto / Manual
AGC: | Auto/Manual
HLC: | Support
Smart defog: | Support
Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 24 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Focal Length: | 4.8 mm to 120 mm, 25× Optical
Zoom Speed: | Approx. 4 s (optical lens, wide-tele)
Angle of View: | Horizontal field of view: 58.2° to 3.2° (wide-tele)
Vertical field of view: 32.7° to 1.8° (wide-tele)
Diagonal field of view: 66.8° to 3.7° (wide-tele)
Minimum Working Distance: | 10-1500mm(Wide-Tele)
Aperture Range: | F1.5~F3.5
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range: | -20°~90°(Auto Flip)
Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets per patrol
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: | ON/OFF
Freeze Frame: | Support
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper: | Optional
IR irradiation distance: | 200m
IR irradiation angle: | Adjustable by zoom
Alarm Input: | 7 Inputs
Alarm Output: | 2
Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Main Stream: | 50Hz:25fps (1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz: 30fps(1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: | Support
Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode: | OFF/Audio input/Audio output
No. of Simultaneous Users: | Up to 20 users
Three-Stream: | Support
Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
Power Consumption: | 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: | IP66 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight (approx.): | 8kg (approx.17.64lb)
