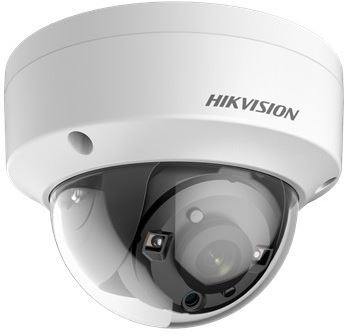

Hikvision DS-2CE57H8T-VPITF 5MP HD-TVI Dome Camera With 2.8mm Lens
Web ID: 906
Hikvision's DS-2CE57H8T-VPITF is an outdoor dome camera that produces exceptional 5MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 30m and with a 2.8mm fixed lens, this camera is great for covering wide areas providing clear focus on the detail that is really required. Part of the H8T series, this camera has switchable video output which give the SI the ability change video signal type between TVI, AHD, CVI and CVBS signal, to suit different appliaction. In addition to switchable output, the H8T series also supports 130dB true wide dynamic range, amazing ultra-low light performance down to 0.003Lux.
Manufacturer PN: DS-2CE57H8T-VPITF
Warranty: 3 Year
Manufacturer Website
DS-2CE57H8T-VPITF
5MP HD-TVI Dome Camera With 2.8mm Lens
Key Features
- 5MP high-performance CMOS
- 2560 x 1944 resolution
- 2.8mm fixed lens
- OSD menu, 3D DNR, 130dB WDR
- EXIR technology, up to 30m IR distance
- 4 in 1 video output
- Up the Coax (HIKVISION-C)
- IP67, IK10 rating
- 12VDC
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| WDR: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Impact Protection: | IK10. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2" ) | |
| Weight: | Approx.500 g (1.10 lb.) | |
Accessories:
