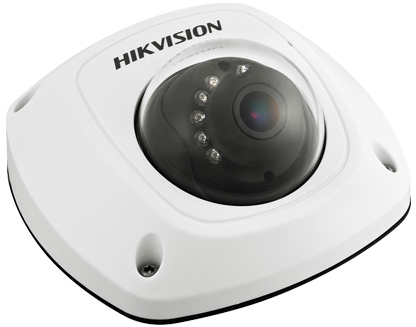

Hikvision DS-2CD6520D-IO 2MP Inner-vehicle Network Camera
Web ID: 3
Hikvision DS-2CD6520D-IO 2MP Inner-vehicle Network Camera
Manufacturer PN: DS-2CD6520D-IO
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3s~1/100,000s |
| Lens: | | | 4mm, horizontal view angle 63°(2.8mm/6mm/8mm optional) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | H: -30°~30°, V: 0°~80°, R: 0°~360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Base Line Profile/Main Profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2) |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920*1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920*1080,1280 × 960,1280 × 720) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | support |
| 3D DNR: | | | support |
| Network | ||
| Network Storage: | | | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| General Function: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | | | ONVIF (Profile S, Profile G),ISAPI |
| Interface | ||
| Audio: | | | Internal Microphone and Speaker |
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 V DC ± 10%, PoE (802.3at) |
| Power Consumption: | | | 5.5W MAX |
| Impact Protection: | | | IK08 Protection Level |
| Weather Proof: | | | IP66 |
| IR Range: | | | 10 meters |
| Dimensions: | | | 99.3x96.7x52.8mm (3.91” × 3.81” × 2.08”) |
| Weight: | | | 600g (1.32lb) |
