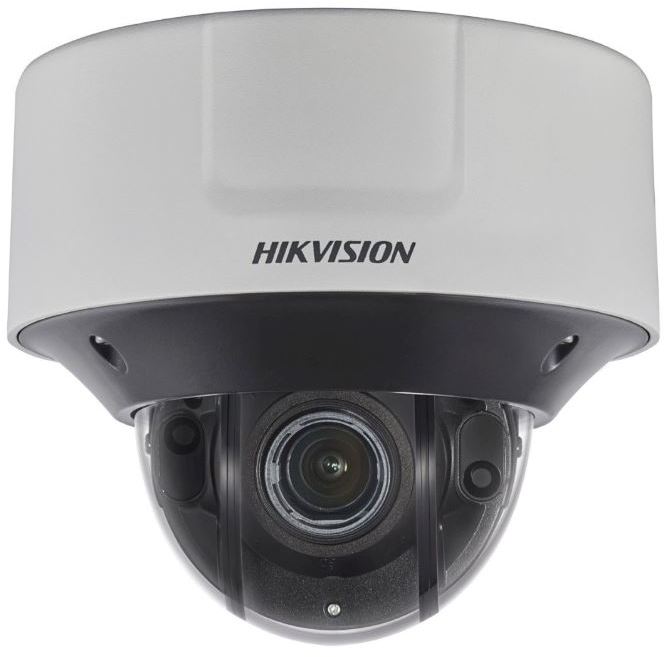

Hikvision DS-2CD55C5G0-IZS 12MP Outdoor Dome Camera With Vari Focal Lens

Web ID: 795

Hikvision DS-2CD55C5G0-IZS 12MP Outdoor Dome Camera With Vari Focal Lens
Manufacturer PN: DS-2CD55C5G0-IZS
Warranty: 3 Year
Manufacturer Website

$2243

DS-2CD55C5G0-IZS
12MP Outdoor Dome Camera With Vari Focal Lens

Key Features

  • 1/1.7” Progressive Scan CMOS
  • 4000 × 3000 @ 20fps
  • 2.8 to 12 mm motor-driven lens
  • Color: 0.008 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • Digital WDR
  • 3D DNR
  • IR range up to 30 m
  • Five streams and up to five custom streams
  • 6 behavior analyses, 3 exception detection, and face detection
  • Built-in microSD/SDHC/SDXC card slot, up to 256 GB
  • Alarm I/O, Audio I/O
  • 12 VDC power output
  • IP67, IK10
Camera
Image Sensor:   1/1.7" Progressive Scan CMOS
Min. Illumination:   Color: 0.008 Lux @ (F1.2, AGC ON)
0 Lux with IR
Shutter time:   1 s to 1/100,000 s
Slow shutter:   Yes
Adjustment Range:   Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   Digital WDR
Digital noise reduction:   3D DNR
Compression Standard
H.264 code profile:   Baseline Profile/Main Profile/High Profile
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-160Kbps(MP2L2)
Max. Image Resolution:   4000 × 3000
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:   50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:   BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction
Target Cropping:   Yes
ROI:   4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Picture Overlay:   LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:   Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Alarm Trigger:   Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
System Compatibility:   ONVIF (Profile S, Profile G),ISAPI
Intelligent
Behavior analysis:   Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface:   1 RJ45 10M/100M/1000M Ethernet port
Alarm:   1-ch input, 1-ch output ( up to 12 VDC 1A or 10 VAC 500 mA)
Reset Button:   Yes
Audio
Environment Noise Filtering:   Support
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
General
Operation Condition:   -IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
-IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
IR Range:   up to 30 m
Power Consumption:   -IZHS:
With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
“with extra load” means that an extra device is connected to and powered by the camera.
-IZS:
With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection:   IK10
Weather Proof:   IP67
Dimensions:   Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)
With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight:   Camera: 1500 g (3.31 lb.)
With package: 1950 g (4.30 lb.)
