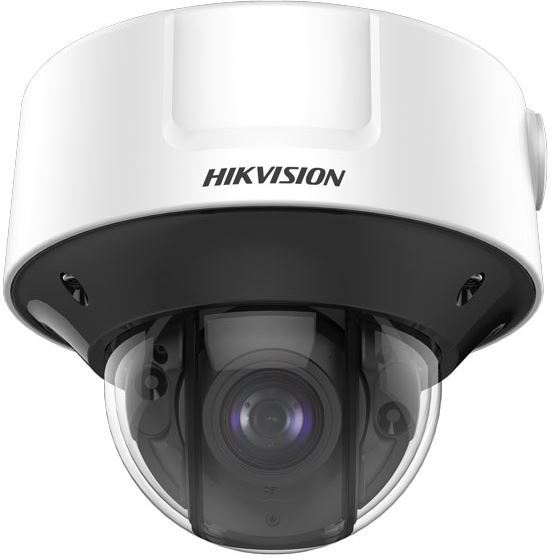

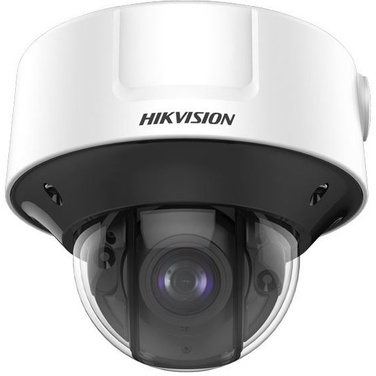

Hikvision DS-2CD5546G0-IZHSY 4MP IP Darkfighter Anti Corrosion Dome Camera With Motorised Lens

Web ID: 853

Part of Hikvision's enterprise range of network cameras, the DS-2CD5546G0-IZHSY is an outdoor motorised varifocal IR dome camera that produces an exceptional 4MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations. The DS-2CD5546G0-IZHSY includes an ideal combination of smart features for its affordable price such as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively. With a 2.8-12mm motorised varifocal lens , this camera offers great flexibility.
Manufacturer PN: DS-2CD5546G0-IZHSY
Warranty: 3 Year
Manufacturer Website


4MP IP Darkfighter Anti Corrosion Dome Camera With Motorised Lens

Key Features

  • 1/1.8” Progressive Scan CMOS
  • 2560 × 1440 @ 30fps, MJPEG up to 1920 × 1080 @ 30fps
  • 2.8 to 12 mm motor-driven lens
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • IR range up to 30 m
  • Five streams and up to five custom streams
  • 6 behavior analyses, 3 exception detection, and face detection
  • Built-in microSD/SDHC/SDXC card slot, up to 256 GB
  • Alarm I/O
  • IP67, IK10
  • Anti-IR reflection
  • Anti-Corrosion: NEMA 4X
Image Sensor:   1/1.8" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:   1 s to 1/100,000 s
Slow shutter:   Yes
Lens:   2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
Lens Mount:   Integrated
Adjustment Range:   Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   140dB
Digital noise reduction:   3D DNR
Focus:   Auto, semi-auto, manual
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:   Baseline Profile/Main Profile/High Profile
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Dual Stream:   Yes
Triple Streams:   Yes
Max. Image Resolution:   2560 × 1440
Frame Rate:   50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:   50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 960,1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:   BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping:   Yes
ROI:   4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Picture Overlay:   LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:   Auto/Schedule/Day/Night/Triggered by Alarm In
Network Storage:   Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
General Function:   One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility:   ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Behavior analysis:   Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Communication Interface:   1 RJ45 10M/100M/1000M Ethernet port
Audio:   1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm:   1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)
Alarm Input:   1
Alarm Output:   1
Video Output:   1Vp-p composite output (75 Ω/CVBS)
On-board storage:   Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:   Yes
Environment Noise Filtering:   Support
Audio Sampling Rate:   8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Region Entrance:   Enter a pre-defined virtual region from the outside place
Region Exiting:   Exit from a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection, defocus detection
Recognition:   Face Detection
Statistics:   Counting which calculates the number of targets entering and exiting a configured area
IR Range:   30m
Operation Condition:   -IZSY: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
-IZHSY: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply:   Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; three-core terminal block,PoE (802.3at, class 4)
Power Consumption:   -IZSY:
With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection:   IK10
Weather Proof:   IP67
Dimensions:   Camera: Φ162 × 140 mm (Φ6.4″ × 5.5″)
With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight:   Camera: 1500 g (3.31 lb.)
With package: 1950 g (4.30 lb.)
