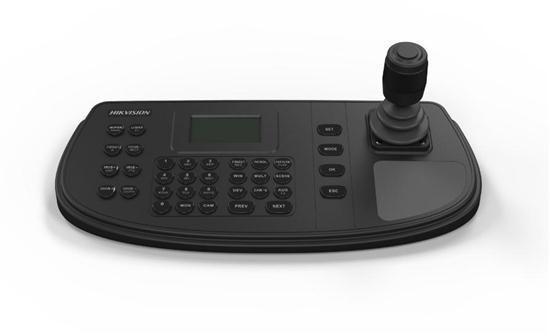

Hikvision DS-1200KI Series Network Keyboard

Web ID: 810

Hikvision DS-1200KI Series Network Keyboard.
Manufacturer PN: DS-1200KI
Warranty: 1 Year
Manufacturer Website


Series Network Keyboard

Key Features

  • 128 x 64 screen
  • 4-axis joystick
  • Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall Controller, decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
  • Connectable to dome and realise PTZ control and picture capture by joystick operation
  • Connectable to DVR via network or serial port, and operation of front panel buttons
  • 16 user accounts management: 1 admin and 15 operators
  • System upgrade and import / export of configuration files by USB-flash disk
  • Captured pictures(FAT32) can be stored in U-flash disk
  • Network access and configuration by web browser support; and up to 1000 devices can be managed in the keyboard operation mode
  • Control mode: RS-232, RS-422, RS-485
  • Network interface 1; 10 M/100 Mbps self-adaptive Ethernet interface
  • Serial interface: 1x RS-232, 1x RS-422, 1x RS-485
  • USB interface: 1x USB 2.0
  • Power supply: 12 VDC
  • Working humidity 10% to 90%
  • Dimensions: (W x D x H) 435 x 193 x 110 mm
  • Weight: 1kg
