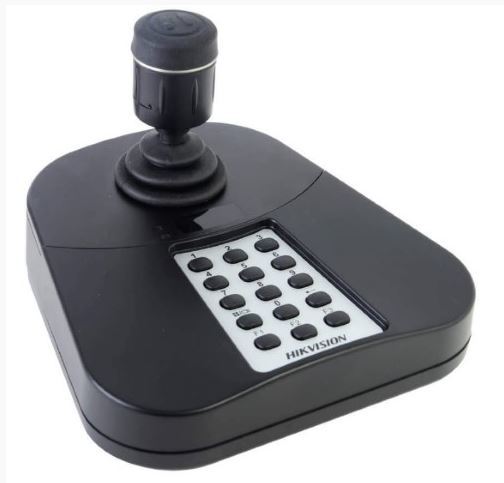

Hikvision DS-1005KI PTZ USB Keyboard

Web ID: 809

The HIK-1005KI is a USB keyboard independently developed by Hikvision that is able to be accessed directly by the client software, the platform software of the iVMS series, DVR and PC-DVR. It's capabilities include functionalities such as window switching, PTZ control, picture capture, recording. This Hikvision unit is compatible with the USB joystick via USB HID protocol and can access third-party platform software. Additionally, it provides amply programmable buttons for the setting of custom functions and has the advantage of a simple interface for easy operation.
Manufacturer PN: DS-1005KI
Warranty: 3 Year
Manufacturer Website


PTZ USB Keyboard

Key Features

  • Power supply and communication directly via USB port
  • 3D PTZ control and 2 Joystick buttons
  • Up to 15 programmable buttons
  • Digital tube support to display the input content
  • Support indicators to show the operation status of the keyboard
Interface Type
Interface Type:   USB 2.0, DirectX
Compatible System
Compatible System:   Window XP/7/8/8.1
Joystick:   Joystick (3-axis control, rotating zoom)
Power Supply:   5V DC via USB
Consumption:   ≤ 5W
Working temperature:   -10°C ~ 55°C (14°F ~ 131°F)
Working humidity:   10%~90% (Non-condensing)
Dimensions (W × D × H):   167×177.5×116mm(6.57” ×6.99” × 4.57”)
