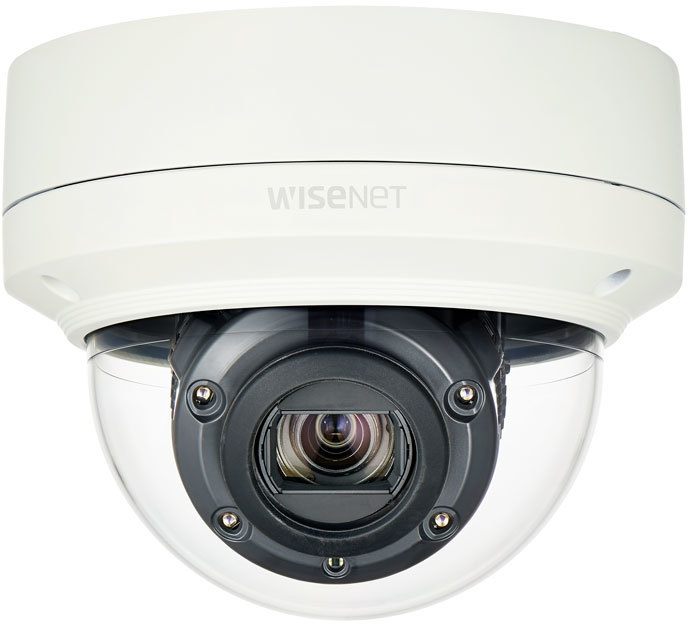

Hanwha Wisenet XNV-6120R 2MP Outdoor Camera With IR and Vari Focal Lens

Web ID: 779

With cutting-edge WDR technology, the Hanwha HAN-XNV-6120R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-6120R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNV-6120R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XNV-6120R
Warranty: 3 Year
Manufacturer Website

XNV-6120R
Hanwha Wisenet 2MP Outdoor Camera With IR and Vari Focal Lens

Key Features

  • 2M Vandal-Resistant Network IR Dome Camera
  • Max. 2Megapixel (1920 x 1080) resolution
  • 5.2 ~ 62.4mm (Optical 12X) Optical Lens
  • Max. 60fps@all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG Codec Supported, Multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional detection, Fog Detection, Audio detection, Sound Classification, Tampering
  • Motion Detection, Handover
  • SD / SDHC / SDXC 2 Slot (Max. 512GB)
  • Hallway View, WiseStreamII Support
  • IR Viewable Length 70m (229.66ft), IP67 / IP66, NEMA 4X, IK10
  • LDC Support (Lens Distortion Correction)
  • PoE , 24V AC, 12V DC, Bi-directional audio Support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNV-6120R
Series WISENET X SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
Megapixel Yes
Sensitivity lux 0 ~ 0.03
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE
Power Consumption: 11.5 ~ 14 W
Focal length 5.2 ~ 62.4 mm
Presets 300
Compression H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Zoom Ratio x12
Network Properties Interface: RJ-45 (10 / 100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 60 fps
Physical Specifications Dimensions mm: 160 x 128
Weight g: 995
Environmental Specifications Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F)
Operating Humidity %: < 90
Protection: IP67, IP66, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12
Web Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only)
Additional info
  • Day & Night (ICR), WDR (150dB), Defog
  • DIS with built-in Gyro sensor
  • Loitering, Directional detection, Fog Detection, Audio detection, Sound Classification, Tampering
  • Motion Detection, Handover
  • SD / SDHC / SDXC 2 Slot (Max. 512GB)
  • Hallway View, WiseStreamII Support
  • LDC Support (Lens Distortion Correction)
