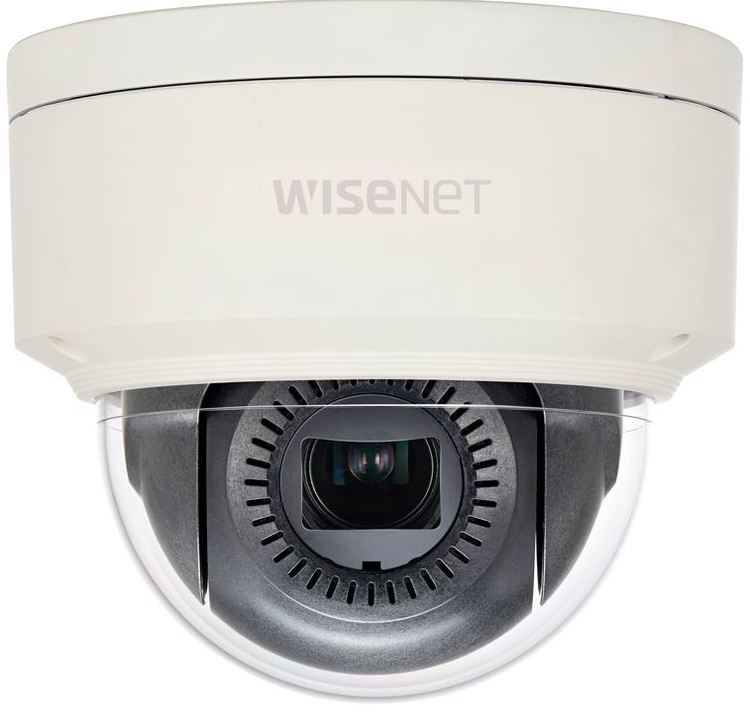

Hanwha Wisenet XNV-6085 2MP Outdoor Dome Camera With Vari Focal Lens

Web ID: 778

With cutting-edge WDR technology, the Hanwha HAN-XNV-6085 conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-6085 reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNV-6085 is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XNV-6085
Warranty: 3 Year
Manufacturer Website

XNV-6085
Hanwha Wisenet 2MP Outdoor Dome Camera With Vari Focal Lens

Key Features

  • Max 2MP @ 60fps
  • Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
  • ½” CMOS sensor with F0.94 Lens (wide)
  • PTRZ, remote adjustment to pan/tilt/zoom/rotation of the lens
  • Triple Codec: H.265, H.264 and MJPEG multiple streaming
  • WiseStream II compression technology
  • WDR 150dB @30fps, 120dB @60fps
  • Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
  • Hallway view, sound classification
  • Dual SD cards
  • Gyro sensor for digital image stabilization
  • IP66/67 NEMA 4X, IK10
  • Power: PoE or 12VDC/24VAC
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNV-6085
Series WISENET X SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution TVL 2MP
Megapixel Yes
Sensitivity lux 0.0004 ~ 0.004
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE
Power Consumption: 11.1 ~ 13.5 W
Focal length 4.1 ~ 16.4 mm
Compression H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Zoom Ratio x4
Network Properties Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Image Frame Rate: 60 fps
Physical Specifications Dimensions mm: 160 x 140
Weight g: 1400
Environmental Specifications Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F)
Operating Humidity %: < 90
Protection: IP67, IP66, IK10
System Requirments Operating System: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 61 (Window 64bit only), Apple Safari 10 (Mac OS X only)
Additional info
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD / SDHC / SDXC memory slot (Max. 512GB)
  • Hallway View, WiseStreamII Support
  • LDC, PoE / 24V AC / 12V DC, Bi-directional audio Support
