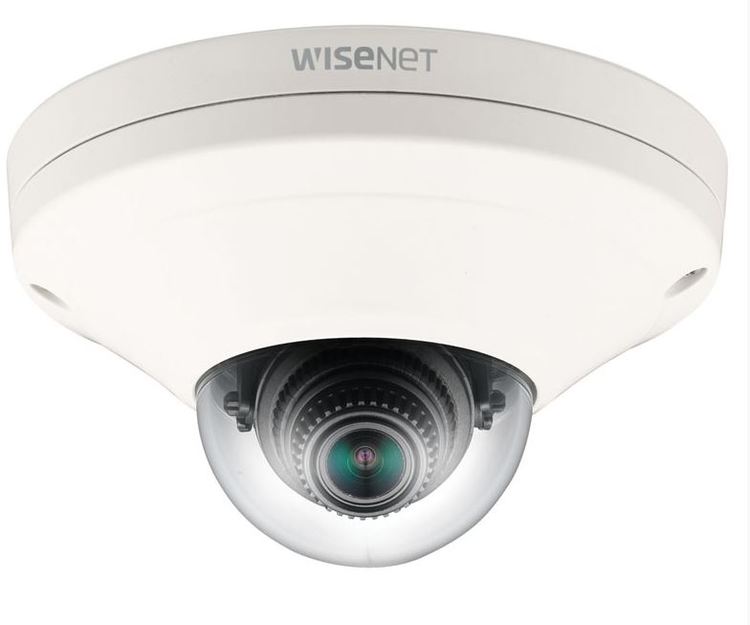

Hanwha Wisenet XNV-6011 2MP Outdoor Mini Dome Camera With 2.8mm Lens

Web ID: 777

With cutting-edge WDR technology, the Hanwha HAN-XNV-6011 conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-6011 reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNV-6011 is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XNV-6011
Warranty: 3 Year
Manufacturer Website

XNV-6011
Hanwha Wisenet 2MP Outdoor Mini Dome Camera With 2.8mm Lens

Key Features

  • 2MP @ 60fps
  • Triple codecH.265/H.264/MJPEG
  • 2.8mm fixed lens
  • Wide Dynamic Range 150dB
  • On-board analytics
  • Digital Image Stabilization
  • IK10/IP66
  • Built-in retail business intelligence analytics
  • USB for easy installation
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNV-6011
Series WISENET X SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
Megapixel Yes
Sensitivity lux 0.055
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: PoE
Power Consumption: 6.5 W
Focal length 2.8 mm
Compression H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Network Properties Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 60 fps
Physical Specifications Dimensions mm: 113 x 64
Weight g: 420
Environmental Specifications Operating Temp oC: -30 ~ +55 C (-22 ~ +131 F)
Operating Humidity %: < 90
Protection: IP66, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only)
Additional info
  • WDR (150dB), Defog
  • Loitering, Directional detection, Fog detection, Defocus detection, Digital auto tracking, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • SD / SDHC / SDXC memory slot (Max. 256GB), PoE / 12V DC
  • Hallway View, WiseStreamII support
