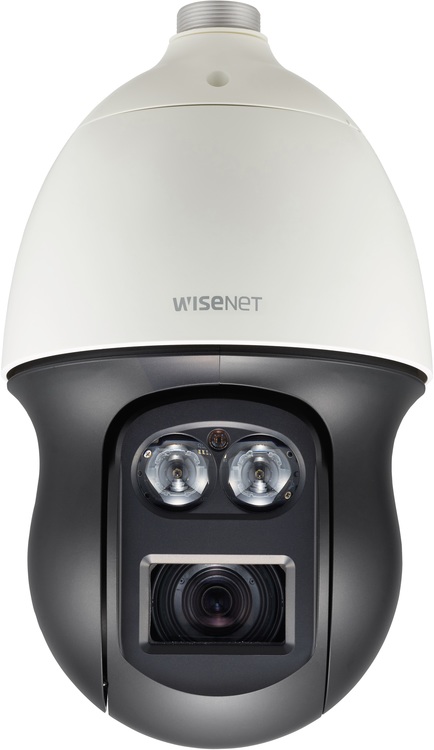

Hanwha Wisenet X Series XNP-6370RH 2MP PTZ With 32X Optical Zoom Lens
Web ID: 744
WiseNet X, network IR PTZ camera with 1/1.9" sensor, IR range for up to 1148', 2MP, Full HD(1080p) @60fps WDR off or @15fps WDR on, H.265/H.264/MJPEG, 37x optical zoom, 120dB WDR, Auto Tracking, true D/N, 24VAC, IP66, IK10, Built-in -58F (-50C) Heater, Analytics
Manufacturer PN: XNP-6370RH
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
XNP-6370RH
Hanwha Wisenet X Series 2MP PTZ With 32X Optical Zoom Lens
Key Features
- Max. 2megapixel (1920 x 1080) resolution
- 16 : 9 Full HD (1080p) resolution support
- 6 ~ 222mm (37x), 16x digital zoom
- H.265, H.264, MJPEG codec
- Multiple streaming
- WiseStream support
- Max. IR viewable length : 350m
- Day & Night (ICR), WDR (120dB)
- Auto tracking, Intelligent video analytics
- SD/SDHC/SDXC memory slot, Bi-directional audio support
- IP66, IK10
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNP-6370RH |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/2 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 2MP |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.05 |
| Dome Type | PTZ |
| Pan Speed o/ sec | Preset : 400, Manual : 0.024 ~ 250 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Tilt Speed o/ sec | Preset : 300, Manual : 0.024 ~ 250 |
| Electrical Specifications | Voltage: 24 V AC Power Consumption: 60 W |
| Focal length | 6 ~ 222 mm |
| Presets | 300 |
| Compression | H.265/H.264 (MPEG-4 Part 10/AVC) : Main/Baseline/High , MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| Zoom Ratio | x37 |
| Network Properties | Interface: RJ-45 (10/100BASE-T), SFP (* Only using SBP-302HF) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 60 fps |
| Physical Specifications | Dimensions mm: 237 x 408 Weight g: 7100 |
| Environmental Specifications | Operating Temp oC: -50 ~ +55 C (-58 ~ +131 F) Operating Humidity %: < 90 Protection: IP66, IK10 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49(Window 64bit only) , Apple Safari 9 (Mac OS X only) |
| Additional info |
|
