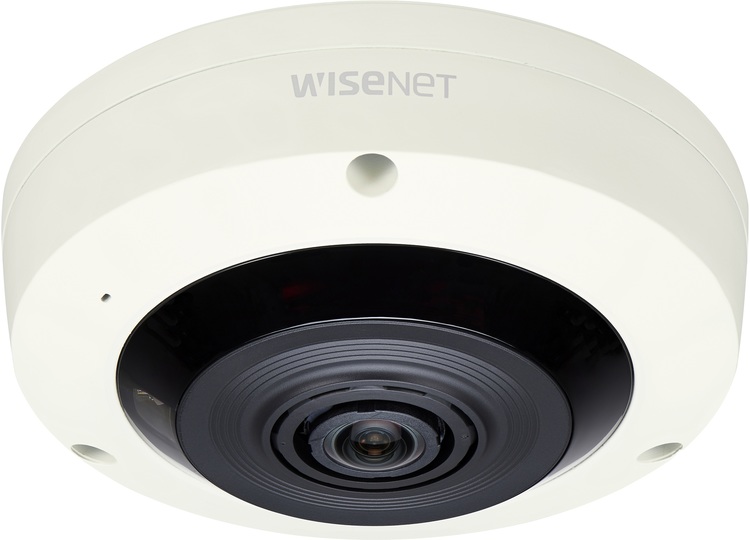

Hanwha Wisenet X Series XNF-8010R 6MP Internal Fish Eye Camera With IR

Web ID: 737

Wisenet X powered by Wisenet 5 network indoor fisheye, 6MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE
Manufacturer PN: XNF-8010R
Warranty: 3 Year
Manufacturer Website

XNF-8010R
Hanwha Wisenet X Series 6MP Internal Fish Eye Camera With IR

Key Features

  • Max 30fps
  • Fisheye lens 1.6mm (192°X192°) W/ simple focus
  • Built-in IR for up to 49’ or 15m
  • Triple Codec: H.265, H.264 and MJPEG multiple streaming
  • WiseStream II compression technology
  • WDR 120dB @30fps
  • Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
  • Sound classification, heatmap, people counting and queue line management
  • Dual SD cards
  • Power: PoE or 12VDC
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNF-8010R
Series WISENET X SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution 6MP
Digital (DSP) Yes
Specialist Type Megapixel
Sensitivity Lux 0 ~ 0.1
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 11 ~ 12 W
Focal Length mm 1.6
Wide Dynamic Range Yes
Picture Elements HxV 2048 x 2048
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Zoom Yes
Y/ C (Video Output) CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB
Compression Type H.265 / H.264 / MJPEG
Physical Specifications Weight g: 730
Dimensions mm: 146 x 55
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Protection: IP66, IK10
Operating Humidity %: < 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 60, MS Edge 40, Mozilla Firefox 55 (Window 64bit only), Apple Safari 10 (Max OS X only)
Additional info
  • Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
  • On board dewarping, Digital PTZ (8x), Bi-directional audio
  • True WDR (120dB), WiseStream? support
  • Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management
  • Motion detection, Handover
  • M12 connector (XNF-8010RVM)
  • SD / SDHC / SDXC memory slot (Max. 512GB), 12V DC / PoE
  • IR viewable length 15m (49.21ft)
