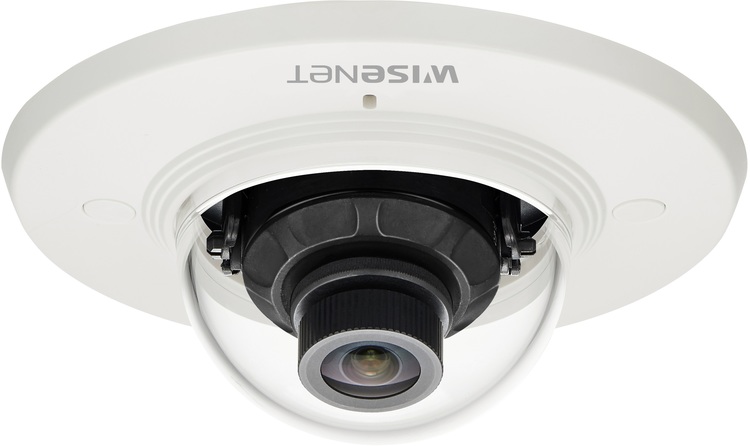

Hanwha Wisenet X Series XND-8020F 5MP Internal Dome Camera With 3.7mm Lens

Web ID: 733

Wisenet X powered by Wisenet 5 network flush mount dome camera, 5MP @ 30fps WDR off/on(120dB), 3.7mm fixed lens (97.5), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics, business analytics and sound classification, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, Defog detection, DIS, PoE, (black and white covers are optional)
Manufacturer PN: XND-8020F
Warranty: 3 Year
Manufacturer Website

XND-8020F
Hanwha Wisenet X Series 5MP Internal Dome Camera With 3.7mm Lens

Key Features

  • Built-in 3.7mm fixed lens
  • Max. 30fps@all resolutions (H.265 / H.264)
  • WDR (120dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • Memory slot (Max. 256GB), PoE / 12V DC
  • Hallway View, WiseStreamII Support
  • LDC Support (Lens distortion correction)
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XND-8020F
Series WISENET X SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution TVL 5MP
Megapixel Yes
Sensitivity lux 0.16
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: PoE
Power Consumption: 4.7 W
Focal length 3.7 mm
Compression H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
Network Properties Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 99 x 129
Weight g: 275
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ +131 F)
Operating Humidity %: < 90
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome, MS Edge, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only)
Additional info
  • WDR (120dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection,Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • SD / SDHC / SDXC memory slot (Max. 256GB), PoE / 12V DC
  • Hallway View, WiseStreamII Support
  • LDC Support (Lens distortion correction)
