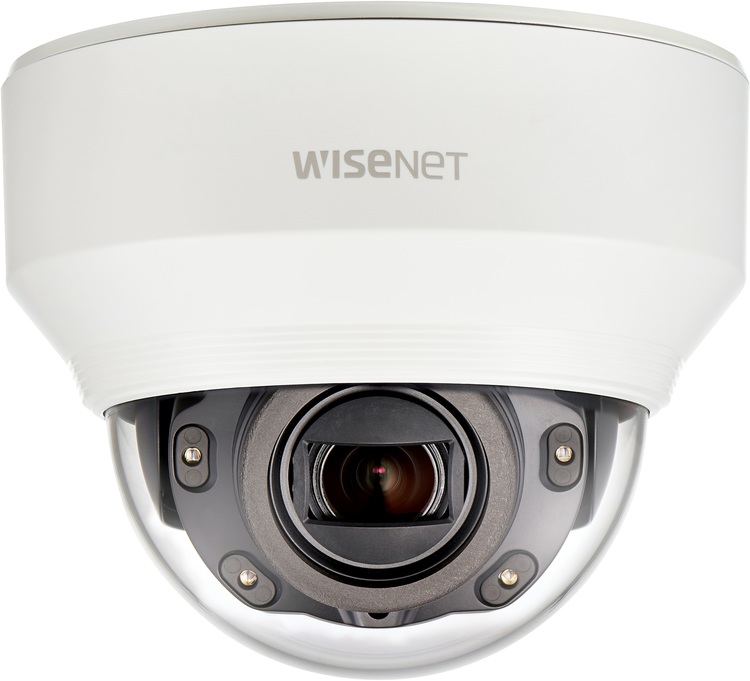

Hanwha Wisenet X Series XND-6080R 2MP Internal Dome Camera With IR & Vari Focal Lens

Web ID: 714

Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Motorized Vari-Focal Lens 4.3x (2.8~12mm) (119.5~27.9), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08
Manufacturer PN: XND-6080R
Warranty: 3 Year
Manufacturer Website

XND-6080R
Hanwha Wisenet X Series 2MP Internal Dome Camera With IR & Vari Focal Lens

Key Features

  • Max. 2megapixel (1920 x 1080) resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection,
    Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 30m, IK08
  • LDC support (Lens Distortion Correction)
  • PoE / 12V DC, Bi-directional audio support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XND-6080R
Series WISENET X SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
HD Yes
Megapixel Yes
Sensitivity lux 0 ~ 0.015
Indoor/Outdoor Indoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 9 W ~ 10 W
Focal length 2.8 ~ 12mm
Compression H.265, H.264, MPEG-4, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000s
S/ N (Signal/ Noise) Ratio dB 50
Video Output 1.0 Vpp / 75Ω composite
Zoom Ratio x4.3
Network Properties Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 30 ~ 60 fps
Physical Specifications Dimensions mm: 141 x 113
Weight g: 724
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: < 90
Protection: IK08
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only
Additional info
  • Max. 2megapixel (1920 x 1080) resolution
  • 2.8 ~ 12mm (4.3x) motorised varifocal lens
  • Max. 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
