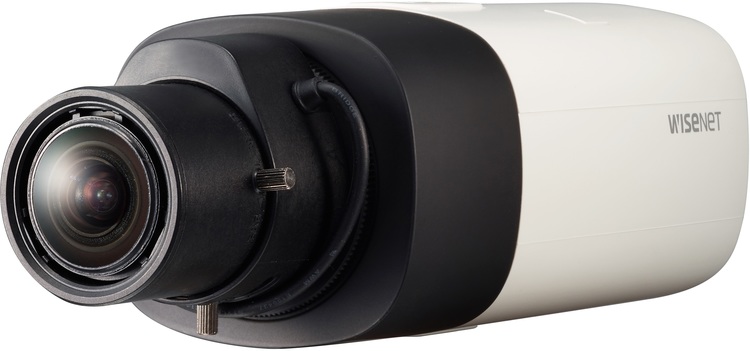

Hanwha Wisenet X Series XNB-8000 5MP Full Body Camera

Web ID: 713

Wisenet X powered by Wisenet 5 network box camera, 5MP @30fps WDR off/on, Simple focus, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS using a Gyro sensor, 12VDC/24VAC/PoE
Manufacturer PN: XNB-8000
Warranty: 3 Year
Manufacturer Website

XNB-8000
Hanwha Wisenet X Series 5MP Full Body Camera

Key Features

  • Max. 5megapixel (2560 x 1920) resolution
  • 0.07Lux@F1.2 (Color), 0.007Lux@F1.2 (B/W)
  • Max. 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB), P-Iris, Defog
  • Digital image stabilization with built-in Gyro sensor
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • LDC support (Lens Distortion Correction)
  • PoE / 24V AC, 12V DC, Bi-directional audio support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNB-8000
Series WISENET X SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution 5MP
Digital (DSP) Yes
Specialist Type Megapixel
Sensitivity Lux 0.007 ~ 0.07
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 7.5W (12VDC), 8.5W (PoE), 8.5W (24VAC)
Lens Mount C/CS
Motion Activated Yes
Wide Dynamic Range Yes
Picture Elements HxV 2,616 x 1,976
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Compression Type H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Physical Specifications Dimensions mm: 73 x 67 x 148
Weight g: 420
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: < 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 9 * Mac OS X only
Additional info
  • Max. 5Megapixel (2560 x 1920) resolution
  • Day & Night (ICR), WDR (120dB), P-Iris, Defog
  • Digital image stabilisation with built-in Gyro sensor
  • Loitering, Directional detection, Fog Detection, Audio detection, Digital Auto Tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD / SDHC / SDXC memory slot (Max. 512GB)
  • Hallway View, WiseStreamII Support
  • LDC Support (Lens Distortion Correction)
  • PoE / 24V AC, 12V DC, Bi-directional audio Support
