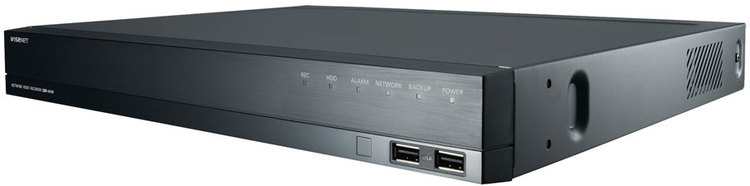

Hanwha Wisenet QRN-1610S 16ch NVR With 16 PoE & 3TB Drive

Web ID: 959

Hanwha's QRN-1610S is a 16 channel NVR that has the ability to record up to 8-megapixels and produce HDMI video output at a resolution of up to 3840x2160. With a built-in PoE switch, this NVR can achieve plug and play through it's 16 PoE ports, it can also carry out a a network camera recording of 128Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 per cent, making the Hanwha QRN-1610S a cost-effective solution for a variety of security scenarios.
Manufacturer PN: QRN-1610S
Warranty: 3 Year
Manufacturer Website

QRN-1610S
Hanwha Wisenet 16ch NVR With 16 PoE & 3TB Drive

Key Features

  • Up to 16ch, 8MP camera supported
  • H.265, H.264, MJPEG codec supported
  • 128Mbps network camera recording
  • Plug and play by 16 PoE ports
  • Max. 2 HDDs supported
  • HDMI/VGA local monitor
  • P2P service (QR code connect) support
  • Display
    Network camera
    Inputs Max. 16CH
    Resolution 8MP ~ CIF
    Protocols Wisenet, ONVIF
    Decoding
    Local Display [Clone Display]
    HDMI: 3840 x 2160, 1920x1080, 1280x720
    VGA: 1920x1080, 1280x720
    Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps),,720p(480fps), D1(480fps)
    Performance
    Operating System
    Embedded Linux
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 128Mbps
    Resolution 8MP ~ CIF
    Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
    Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
    Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Play
    Playback Bandwidth Max. 32Mbps(16CH simultaneously)
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 16CH(Network)
    Max. 8CH(Local Monitor)
    Fisheye Dewarping N/A (processed on Web / CMS)
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 2ea(Max. 12TB)
    Backup
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Upto 8CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Wisenet DDNS
    Transmission Bandwidth Max. 128Mbps
    Audio
    Input/Output 16 CH(network)
    Compression G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Web viewer
    Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
    Supported browser Plug-in free web viewer
    - Supported Browser: Google Chrome 47, MS Edge 20
    Plug-in Webviewer
    - Supported MS Explore 11, Apple Safari 9 * Mac OS X only
    Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer, SPC-2000
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live(Multi-Profile Support), Playback
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    HDMI 1EA
    VGA 1EA
    Audio Out(1EA, RCA, Line)
    Ethernet RJ-45(10/100/1000BASE-T) x 1
    RJ-45(PoE+) x 16
    Alarm In 4EA, Out 2EA
    USB 2EA(Front 1, Rear 1)
    Power inlet AC 1EA
    System
    System Control Mouse, IR remocon, Web, Controller
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
    Environmental
    Operating Temperature 0°C to +40°C(32? to 104?)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100~240VAC±10%
    Power Consumption Max. 158.2W(2HDDs, PoE on)
    Max. 34.6W(2HDDs, PoE off)
    PoE Budget Max. 100W
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) W370.0 x H44.0 x D320 mm (14.57" x 1.73" x 12.6") (1U)
    Weight 2.79Kg (6.15lb)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin.
