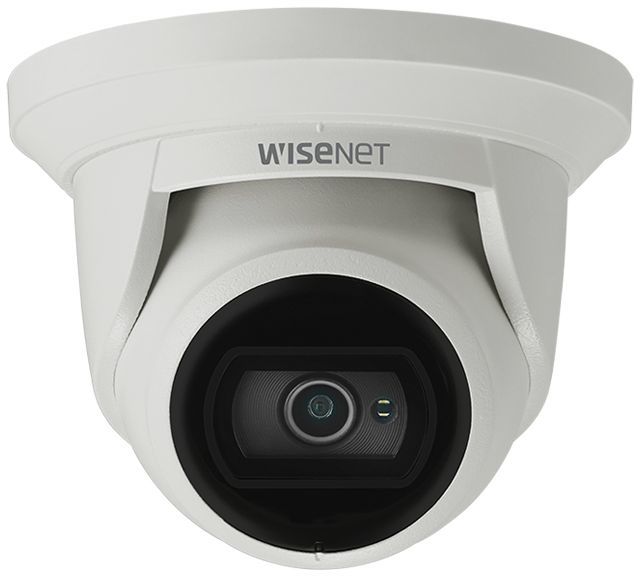

Hanwha Wisenet QNE-8021R IR Outdoor Flateye Camera With 4mm Lens
Web ID: 953
The Hanwha QNE-8021R possesses Wisenet technology which offers two types of resolutions which gives the user the flexibility to choose the camera that best fits their security needs. WiseStream technology can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. The higher quality resolution allows for more accurate forensic inspection of a person's face or a licence plate. The Hanwha QNE-8021R is durable in extreme environmental conditions through it's IP67 and IK10 ratings. The use of a flat eye dome camera reduces the problem of the view being obscured by external contamination or scratching and installation is faster with the flat eye camera as there is no need to remove and mount a dome cover, making this camera a flexible and easy solution for any security environment.
Manufacturer PN: QNE-8021R
Warranty: 3 Year
Manufacturer Website
QNE-8021R
Hanwha Wisenet IR Outdoor Flateye Camera With 4mm Lens
Key Features
- Max. 5MP (2592 x 1944) resolution
- 4mm fixed lens
- Max. 30fps at 5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, multiple streaming
- Day & night, WDR (120dB)
- Tampering, motion detection, defocus detection
- Micro SD / SDHC / SDXC memory slot (max. 128GB)
- Hallway view, WiseStream support
- 20m IR
- LDC
-
Video Imaging Device 1/2.8" 5MP CMOS Effective Pixels 2592(H)x1944(V) Min. Illumination Color: 0.15Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)Lens Focal Length (Zoom Ratio) 4.0mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 80.1°/ V: 58.0°/ D: 105.8° Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~350° / 0°~75° / 0°~360° Operational IR Viewable Length 25m(82.02ft) Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line Alarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggersNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Resolution 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Smart Codec WiseStream? Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformWeb Viewer Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)Memory 512MB RAM, 256MB Flash Environmental Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°CStorage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH Certification IP67, IK10 Electrical Input Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE: Max 7.40W, typical 5.50W Mechanical Color / Material White / Aluminum RAL Code RAL9003 Product dimensions / weight Ø125.0x87.4mm(Ø4.92x3.44"), 645g(1.42 lb) DORI Detect 61.7m(202.33ft) Observe 24.7m(80.93ft) Recognize 12.3m(40.47ft) Identify 6.2m(20.23ft) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
