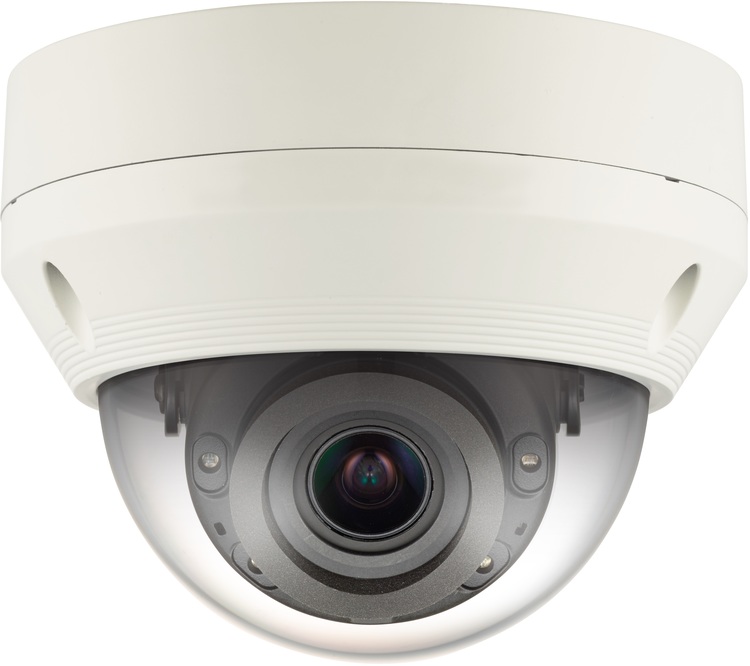

Hanwha Wisenet Q Series QNV-7080R 4MP Outdoor Vandal Dome With IR & Vari Focal Lens

Web ID: 702

The QNV-7080R from Hanwha's Q Series affordable network camera line is a 4MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm motorized varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Manufacturer PN: QNV-7080R
Warranty: 3 Year
Manufacturer Website

QNV-7080R
Hanwha Wisenet Q Series 4MP Outdoor Vandal Dome With IR & Vari Focal Lens

Key Features

  • Max. 4M resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 30m, IP66, IK10
  • Hallway view support
  • LDC support (Lens Distortion Correction)
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code QNV-7080R
Series WISENET Q SERIES
Chip Inch Size 1/3
Colour Type True Day / Night
Resolution TVL 4MP
HD Yes
Megapixel Yes
Sensitivity lux 0 ~ 0.15
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 6.4 ~ 7.2 W
Focal length 2.8 ~ 12mm
Compression H.265, H.264, MPEG-4, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Built-in IR LED Yes
Zoom Ratio x4.3
Network Properties Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 15 ~ 20 fps
Physical Specifications Dimensions mm: 137 x 106
Weight g: 680
Environmental Specifications Operating Temp oC: -30 ~ +55 C (-22 ~ +131 F)
Operating Humidity %: 0 ~ 90
Protection: IP66, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Web Browser: Google Chrome 47, MS Edge 20
Additional info
  •  Max. 4M resolution
  • 2.8 ~ 12mm (4.3x) motorised varifocal lens
  • Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 30m, IP66, IK10
