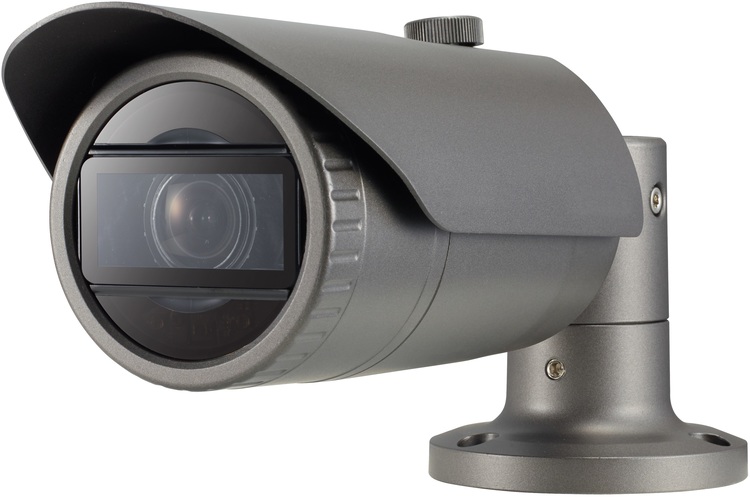

Hanwha Wisenet Q Series QNO-7080R 4MP Outdoor Bullet With IR & Vari Focal Lens

Web ID: 699

The QNO-7080R from Hanwha's Q Series affordable network camera line is a 4MP bullet network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm motorized varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Manufacturer PN: QNO-7080R
Warranty: 3 Year
Manufacturer Website

QNO-7080R
Hanwha Wisenet Q Series 4MP Outdoor Bullet With IR & Vari Focal Lens

Key Features

  • Max. 4M resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 30m, IP66, IK10
  • Hallway view support
  • LDC support (Lens Distortion Correction)
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code QNO-7080R
Series WISENET Q SERIES
Chip Inch Size 1/3
Colour Type True Day / Night
Resolution 4MP
Digital (DSP) Yes
Specialist Type Infrared
Sensitivity Lux 0 ~ 0.15
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 7 ~ 8 W
Focal Length mm 2.8 ~ 12
Wide Dynamic Range Yes
Picture Elements HxV 2688 x 1520
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Compression Type H.265, H.264, MJPEG
Physical Specifications Weight g: 750
Dimensions mm: 70 x 246
Environmental Specifications Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F)
Protection: IP66, IK10
Operating Humidity %: < 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Web Browser: Google Chrome 47, MS Edge 20, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Additional info
  • Max. 4megapixel resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 20fps@4M, Max.30fps@2M all resolutions
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Motion detection, Tampering, Defocus detection
  • micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DC
  • IR viewable length 30m, IP66, IK10
  • Hallway view support
  • LDC support (Lens Distortion Correction)
