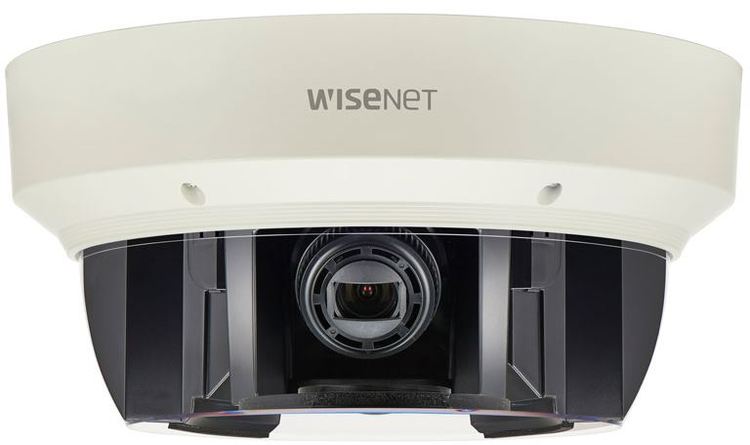

Hanwha Wisenet PNM-9080VQ 8MP Outdoor 360 Multi Sensor Camera With 4 x 2MP Vari Focal Lens
Web ID: 765
Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 4 sensors) 8MP @ 60fps WDR off/on(120dB), motorized vari-focal Lens 4.3x (2.8~12mm) (119.5~27.9), triple Codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, Defocus detection, built in analytics, true D/N, 4x SD card, hallway view, HLC, Defog detection, DIS(Gyro sensor), 12VSC/PoE+, IP66/IK10, -40C ~ +55C (-40F ~ +131F)
Manufacturer PN: PNM-9080VQ
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
PNM-9080VQ
Hanwha Wisenet 8MP Outdoor 360 Multi Sensor Camera With 4 x 2MP Vari Focal Lens
Key Features
- Max 8MP @ 60fps, 2MP X 4 sensors using one IP address
- Motorized vari-focal 2.8~ 12mm (FOV: 119.5°~27.9°)
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @ 8MP @30fps, 120dB @8MP @60fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Hallway view
- SD cards (each channel has its own)
- Gyro sensor for digital image stabilization
- Power: PoE+ or 12VDC
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | PNM-9080VQ |
| Series | WISENET P SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 8MP |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0.0015 ~ 0.015 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 21.6 ~ 25.5 W |
| Focal length | 2.8 ~ 12mm |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000s |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Built-in IR LED | Yes |
| Video Output | 1.0 Vpp / 75Ω composite |
| Zoom Ratio | x4.3 |
| Network Properties | Interface: RJ-45 (10/100/1000BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 30 ~ 60 fps |
| Physical Specifications | Dimensions mm: 314 x 152 Weight g: 4,830 |
| Environmental Specifications | Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: 0 ~ 90 Protection: IP66, IK10 |
| System Requirments | Operating System: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 |
| Additional info |
|
