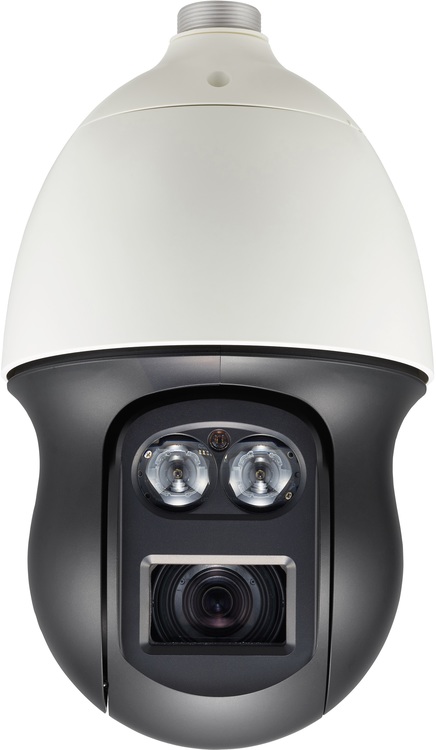

Hanwha Wisenet P Series PNP-9200RH 4K External PTZ With IR and 20X Optical Zoom Lens

Web ID: 710

The PNP-9200RH features 20x optical zoom lens and IR viewable length up to 656ft enabling users to capture 4K high quality images anytime, anywhere. Additionally, Endless 360 pan rotation and 190 tilt control, advanced Auto Tracking functions are suitable to make your monitoring more powerful, mechanical anti-vibration.
Manufacturer PN: PNP-9200RH
Warranty: 3 Year
Manufacturer Website

PNP-9200RH
Hanwha Wisenet P Series 4K External PTZ With IR and 20X Optical Zoom Lens

Key Features

  • Max. 8megapixel (3840 x 2160) resolution
  • Real 4K 20x IR corrected optical zoom, 16x digital zoom
  • Max. Prest 400°/sec (Pan), 300°/sec (Tilt)
  • H.265, H.264, MJPEG, WiseStream support
  • Max.30fps@4K (H.265, H.264)
  • Max. IR viewable length : 200m
  • Day & Night (ICR), WDR (120dB)
  • Auto tracking, Intelligent video analytics
  • SD/SDHC/SDXC memoty slot (Max. 128GB)
  • IP66, IK10, Bi-directional audio support

Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code PNP-9200RH
Series WISENET P SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution TVL 8MP
HD Yes
Megapixel Yes
Sensitivity lux 0.0005 ~ 0.3
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC
Power Consumption: 60 ~ 90 W
Focal length 4.8 ~ 96mm
Compression H.265, H.264, MPEG-4, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000s
S/ N (Signal/ Noise) Ratio dB 50
Built-in IR LED Yes
Video Output : 1.0 Vpp / 75Ω composite
Zoom Ratio x20
Network Properties Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 237 x 408
Weight g: 7,100
Environmental Specifications Operating Temp oC: -50 ~ +55 C (-58 ~ +131 F)
Operating Humidity %: 0 ~ 90
Protection: IP66, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Web Browser: Google Chrome 47, MS Edge 20
Additional info
  • Max. 8megapixel (3840 x 2160) resolution\
  • Real 4K 20x IR corrected optical zoom, 16x digital zoom
  • Max. Prest 400°/sec (Pan), 300°/sec (Tilt)
  • H.265, H.264, MJPEG, WiseStream support
  • Max.30fps@4K (H.265, H.264)
  • Max. IR viewable length : 200m
  • Day & Night (ICR), WDR (120dB)
  • Auto tracking, Intelligent video analytics
