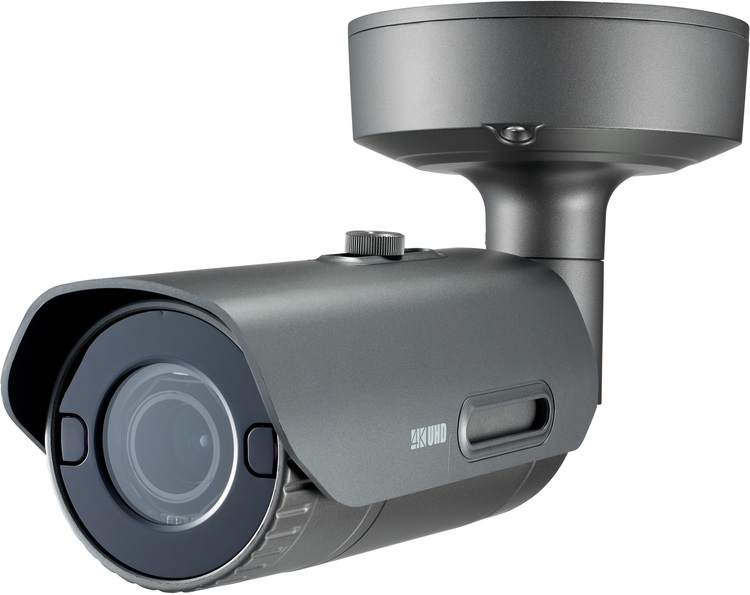

Hanwha Wisenet P Series PNO-9080R 4K Outdoor Bullet With IR & Vari Focal Lens

Web ID: 707

The PNO-9080R from Hanwha's Wisenet P Series Performance IP camera line is a 4K, 12MP outdoor bullet featuring Hanwha's WiseStream technology, triple codec H.265/H.264/MJPEG, motorized vari-focal 4.5~10mm lens, True D/N, True WDR (120dB), IR (40m), edge analytics, SD card slot (SD/SDHC/SDXC up to 128GB), digital auto tracking, Hallway view, IK10/IP66, supports PTZ handover function.
Manufacturer PN: PNO-9080R
Warranty: 3 Year
Manufacturer Website

PNO-9080R
Hanwha Wisenet P Series 4K Outdoor Bullet With IR & Vari Focal Lens

Key Features

  • Max. 12megapixel (4000 x 3000) resolution
  • Max. 20fps@12M, Max.30fps@8M
  • 0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
  • 4.5 ~ 10mm (2.2x) motorized varifocal lens
  • H.265, H.264, MJPEG suppport
  • Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
  • Motion detection, Defocus detection, Tampering
  • SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
  • Hallway view (Rotate 90° / 270°)
  • WiseStream support, Digital auto tracking
  • IP66, IK10, Bi-directional audio support

Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code PNO-9080R
Series WISENET P SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution 4K
Digital (DSP) Yes
Specialist Type Infrared
Sensitivity Lux 0 ~ 0.3
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 10.45 ~ 14.08 W
Focal Length mm 4.5 ~ 10
Wide Dynamic Range Yes
Picture Elements HxV 4072 x 3046
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100/1000BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Zoom Yes
Y/ C (Video Output) CVBS : 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation DIP connector type
Compression Type H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Physical Specifications Weight g: 1400
Dimensions mm: 82 x 87 x 348
Environmental Specifications Protection: IP66, IK10
Operating Temperature oC: -40 ~ +55C (-40 ~ +131 F)
Operating Humidity %: < 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Web Browser: Google Chrome 47, MS Edge 20, MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Additional info
  • Max. 12megapixel (4000 x 3000) resolution
  • Max. 20fps@12M, Max.30fps@8M
  • Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
  • Motion detection, Defocus detection, Tampering
  • SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
  • Hallway view (Rotate 90° / 270°)
  • WiseStream support, Digital auto tracking
