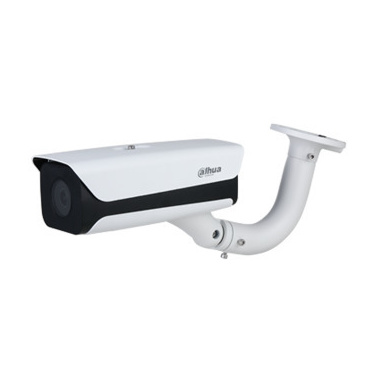

Dahua DHI-ITC215-PW6M-IRLZF-B 2MP ANPR Camera 2.7-13.5mm otorised Lens

Web ID: 1321

The short range access ANPR camera adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7. In addition, it embraces deep learning algorithm for accurate recognition of vehicles without license plate, vehicle model, vehicle logo, vehicle series, vehicle color, and more. The camera is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more.The access ANPR kit is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more.
Manufacturer PN: DHI-ITC215-PW6M-IRLZF-B
Warranty: 3 Year
Manufacturer Website

$1140

Dahua DHI-ITC215-PW6M-IRLZF-B 2MP ANPR Camera 2.7-13.5mm otorised Lens 0

Basic

Illuminator Number

6 IR illuminators, brightness adjustable

Image Sensor

1/2.8'' CMOS

Image Resolution

1920 × 1080 (OSD black strip excluded)

Video Resolution

Main stream: 1080P (1920 × 1080)/720P (1280 × 720)
Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate

H.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps

Video Compression

H.264B/H.264M/H.264H/H.265/MJPEG

Picture Encoding Format

JPEG

Noise Reduction

3DNR

White Balance

Full auto, auto color temperature range, customized color temperature

Electronic Shutter Speed

1/50–1/10000, auto or manual

WDR

96 db

Edge Enhancement

Yes

Exposure Mode

Full auto, customized auto, customized

Iris Control

Auto iris (W: 1.6–T: 3.3)

Performance

Trigger Mode

Video detection; I/O coil; video detection and I/O coil

Shutter

Single shutter

Storage

1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G

Image Tampering Prevention

Yes. Video/picture can be checked through watermark and verification

Field of View

Horizontal: 108.1° (W)–30.3° (T);

Vertical: 56.3° (W)–17.1° (T);

Diagonal: 130.9° (W)–34.8° (T)

Illumination Distance

12 m (39.37 ft)

Capture Range

3 m–6 m (9.84 ft–19.69 ft)

Detected Lane Width

3 m –4 m (9.84 ft–13.12 ft)

Min Ambient Illuminance

0.002 Lux. Illuminator is designed with the camera for illumination

Max Speed that the Camera Detects

30 km/h

Alarm Event

Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Automatic Network Replenishment (ANR)

Yes. Platform/FTP

Auto Registration

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥99%

Vehicle Recognition

Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color,
license plate, features of driver and front-seat passenger, and vehicle without
plate. Vehicle recognition rate ≥95%

Video Metadata

Yes

Intelligent Track Frame

Intelligent frame display. Supports displaying vehicle plate and vehicle path

Port

Lens Mount

Φ14

Analog Output

1

Network

1 100/1000M Ethernet port (RJ-45)

RS-485

2

RS-232

1

Alarm Input

3, optocoupler input (on-off input)

Alarm Output

3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers

Audio Input

1-channel RCA port

Audio Output

1-channel RCA port

General

Power Supply

12V DC, 24V AC, PoE+

Power Consumption

<20W

Operating Temperature

−30°C to +65°C (−22°F to +149 °F)

Operating Humidity

10%RH–90%RH (no condensation)

Casing

Metal and plastic

Protection Grade

IP67

Dimensions

486.7 mm × 124.3 mm × 185.5 mm (19.16'' × 4.89'' × 7.30'') (L × W × H)

Net Weight

1.9 kg (4.19 lb)

Gross Weight

3.3 kg (7.28 lb)

Installation

Installed with bracket

Lens

3.2 mm –10.5 mm

Certification

CE, FCC

Yes

RoHS

Yes
