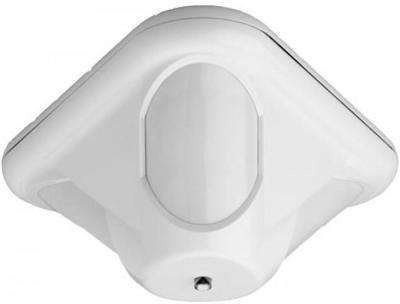

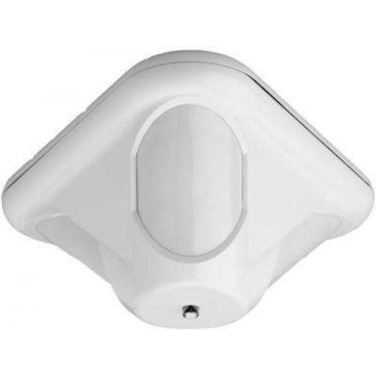

Bosch DS9370 Series Panoramic TriTech Ceiling Mount Detector

Web ID: 489

Bosch DS9370 Series Panoramic TriTech Ceiling Mount Detector
Manufacturer PN: DS9370
Warranty: 3 Year
Manufacturer Website

  • Fully adjustable optics for coverage integrity and customization
  • Hinged chassis and base plate for easy installation
  • High efficiency LED and light pipe system for easy walk testing
  • First Step processing, or FSP
  • 10.525 GHz-compatible, in white
Design Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring.
Dimensions 8.9 cm x 17.8 cm (3.5 in. X 7 in.)
Material High impact ABS plastic enclosure
Operating Temperature -40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
Height Range 3 m to 7.6 m (8 ft to 25 ft) recommended
Location Mounts directly to ceiling or to standard 10.2 cm (3.5 in.) octagonal electrical box.
Alarm Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads.
Tamper Cover and ceiling tamper. Normally Closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum.
Current 19 mA standby, 39 mA in alarm.
Voltage 9 VDC to 15 VDC
