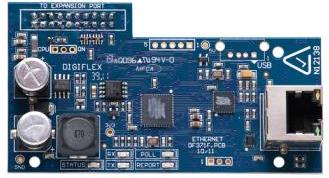

Bosch CM751B IP Ethernet Module for 6000 Panel
Web ID: 164
High security (128bit encryption) replacement for PSTN line. Remote upload / download over IP and alarm reporting over LAN/WAN. Operate outputs and areas remotely. Dynamic and fixed IP address support. Conettix and CSV-IP reporting formats. This product is required with a Bosch 6000 alarm panel if setting up MyAlarm iFob subscription.
Manufacturer PN: CM751B
Warranty: 3 Year
Manufacturer Website
$219
| Power Requirements | |
| Operating Voltage: | Supplied by panel – derate the maximum available 12V accessory power from the panel by 60mA when the module is fitted |
| Connections | |
| Network Interface: | RJ45 Ethernet 10base-t or 100base-TX (Auto Sensing) |
| Protocols Supported: | RP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, SMTP, and httpSolutionLink Upload / Download Software, Conettix, CSV IP, MyAlarm CID etc |
| Encryption: | 128 bit AES Rijndael |
| Module Connection: | The CM751B mounts to the control panel PWA via the expansion port header and 3 plastic PCB standoffs provided. The HW750 Riser Kit, also included, should be used when the CM751B and CM101B Voice Module are installed on the same panel. |
| Environmental Considerations | |
| Temperature: | 0o to 55oC Operating |
| Humidity: | 5% to 85% at 30°C non-condensing |
| Enclosure | |
| Dimensions: | 93(W) x 52(D) x 30(H)mm |
| Warranty: | 3 years |
