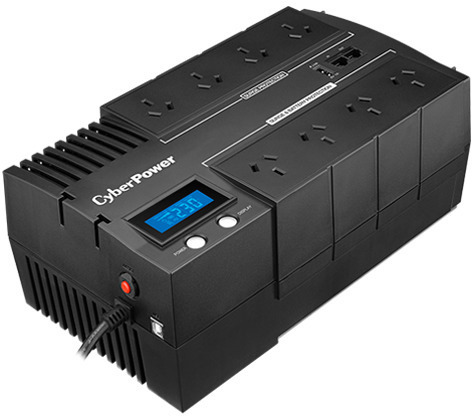

850VA CyberPower BRIC-LCD UPS

Web ID: 919

850VA CyberPower BRIC-LCD UPS
Manufacturer PN: BRIC-LCD
Warranty: 2 Year


Our BRICs LCD Series UPS Systems mark a continuation in the tradition of excellence, our engineering team has achieved. They sacrifice neither features nor power to achieve their compact size, and mark the right choice for a Home or SOHO application environment. They are designed for customers who value versatility, manageability and performance on a stable platform.

These series have been developed on a Line-Interactive, Energy-Saving modern hardware platform designed to meet virtually all of today’s Home/SOHO needs, thereby reducing your dependence on multiple systems. With 4-main battery & surge backed outlets as well as 4-surge backed outlets, enhanced safety features and a highly controlled operation, you can go ahead and connect onto them your most precious electronic devices and your emergency running systems, being ready in case of a power outage!

Unique features within these models make them easy to use and manage, protecting your investment for many years to come! From functionality down to aesthetic details, our BRICs LCD Series give and overall high-tech impression, and we are proud to recommend them to you!


Energy Saving System based on GreenPower UPSTM Technology

Line Interactive Technology & MCU Digital Control

Automatic Voltage Regulation (AVR)

EMI, RFI, Surge & Lightning Spike Protection

Phone, Fax, Modem, DSL, & Network Protection

Elaborate Power Management Software Included

AutoRestart, AutoCharge & Scheduled Shutdown Function

Horizontal or WallMount Usage & Easy Serviceability

USB Port for PC Connection

Cable Collector for Neat Cable Management

LCDbased Multifunction Status Monitor

Compact Design, High Reliability, Great Performance



BRICs 650ELCD: 650VA or 390W. BRICs 850ELCD: 850VA or 510W

TYPICAL RUNTIME: BRICs 650ELCD: 24 min. BRICs 850ELCD: 35 min



Used to display detailed information on the UPS status, (Line / Battery Mode), and current power conditions

Displays 5 different Information blocks including: Output Voltage Level, Estimated Run-Time based on Actual Load, Load Capacity, Battery Capacity, and Input Voltage Level.


Voltage Range: 160 ~ 265Vac

Frequency Range: 50Hz / 60Hz (+/- 3Hz) Auto-sensing



On Battery Output Voltage: Simulated Sinewave at 230Vac (+/- 10%)

On Battery Output Frequency: 50Hz / 60Hz (+/- 1%)

Typical Transfer Time: 4ms

Overload Protection Scheme: On Utility- Circuit Breaker and Internal Current Limiting / On Battery- Internal Current Limiting

Automatic Voltage Regulation (AVR): Boost Only



Sealed Maintenance-Free Lead-Acid Batteries, Easily Replaceable by User

BRICs 650ELCD: 12V, 7.0AH x 1. BRICs 850ELCD: 12V, 9.0AH x 1

Typical Recharge Time: 8 Hours


Multi-function LCD Display

Power-On LED

Audio Alarms for: Overload, On-Battery, and Low-Battery



8 Plugs (AS-3112 Australian Type): 4 for Battery Backup & Surge, and 4 only for Surge Protection

RJ11/RJ45 Input/Output for Surge Protection



USB Port for PC Connection


Manual Self-Test

Auto Charge

Auto Restart

Scheduled Shutdown Function

Power Panel® Personal Edition Elaborate Software for PC Connectivity and Management

Inbuilt Cable Collector / Management



Dimensions: 271 (L) x 160 (W) x 114 (H) mm

Weight: BRICs 650ELCD: 5.5kg. BRICs 850ELCD: 6.4kg

Storage Temperature: -15oC ~ 45oC

Operating Temperature: 0oC ~ 40oC

Operating Humidity: 0%~95% Non-Condensed
