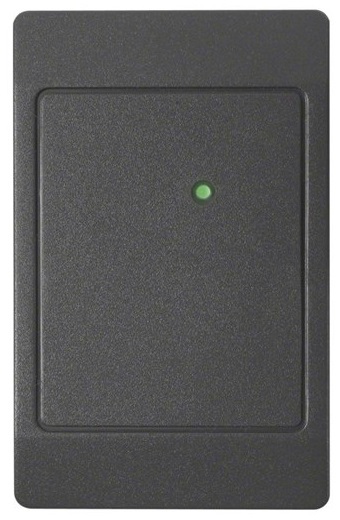

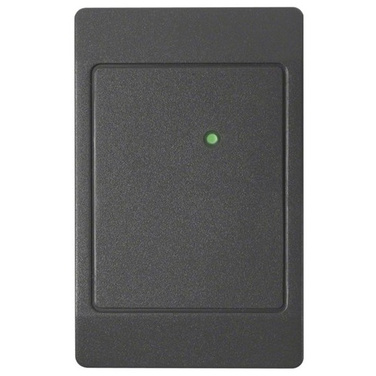

Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output)

Web ID: 435

Providing performance and reliability, HID's attractive, unobtrusive ThinLine II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure the size of most standard U.S. switch plates. Available with Wiegand or Clock-and-Data interface. Potted reader suitable for indoor or outdoor use.
Manufacturer PN: HID-5395CK100
Warranty: 2 Year
Manufacturer Website


Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output) 0

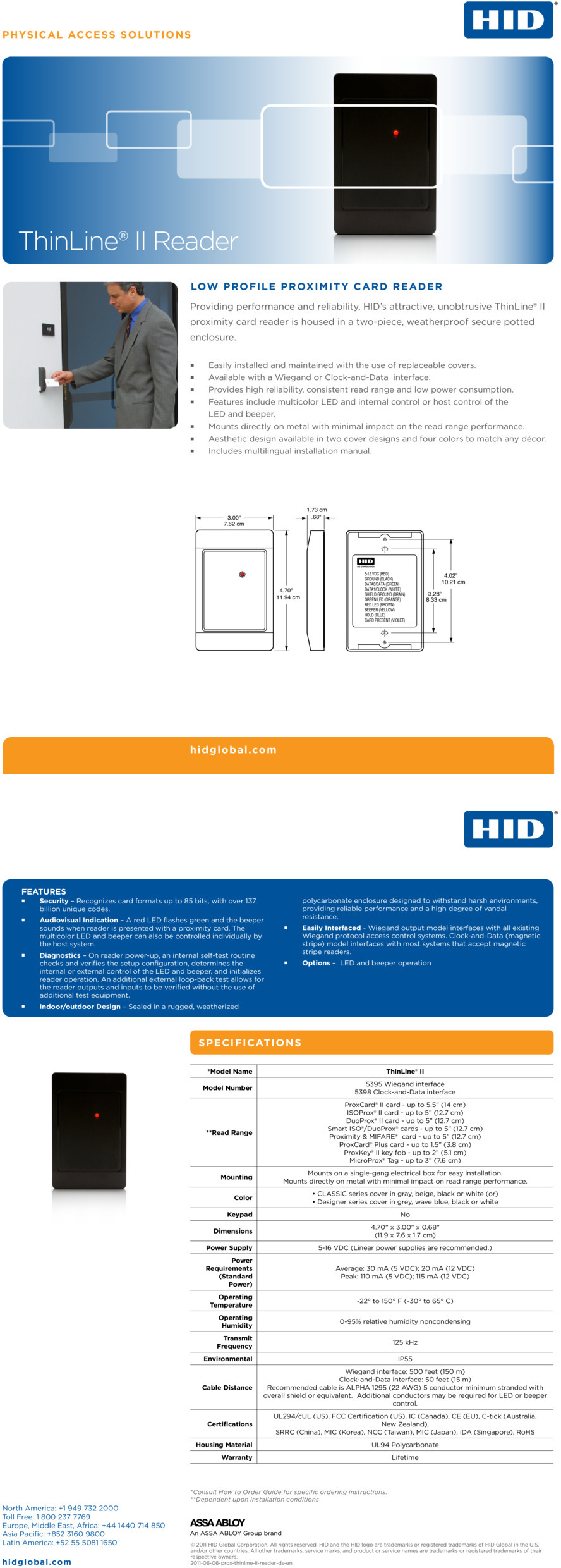

  • *Model Name ThinLine® II
    Model Number 5395 Wiegand interface
    5398 Clock-and-Data interface
    **Read Range
    ProxCard® II card - up to 5.5” (14 cm)
    ISOProx® II card - up to 5” (12.7 cm)
    DuoProx® II card - up to 5” (12.7 cm)
    Smart ISO®/DuoProx® cards - up to 5” (12.7 cm)
    Proximity & MIFARE® card - up to 5” (12.7 cm)
    ProxCard® Plus card - up to 1.5” (3.8 cm)
    ProxKey® II key fob - up to 2” (5.1 cm)
    MicroProx® Tag - up to 3” (7.6 cm)
    Mounting Mounts on a single-gang electrical box for easy installation.
    Mounts directly on metal with minimal impact on read range performance.
    Color • CLASSIC series cover in gray, beige, black or white (or)
    • Designer series cover in grey, wave blue, black or white
    Keypad No
    Dimensions 4.70” x 3.00” x 0.68”
    (11.9 x 7.6 x 1.7 cm)
    Power Supply 5-16 VDC (Linear power supplies are recommended.)
    Average: 30 mA (5 VDC); 20 mA (12 VDC)
    Peak: 110 mA (5 VDC); 115 mA (12 VDC)
    Temperature -22° to 150° F (-30° to 65° C)
    Humidity 0-95% relative humidity noncondensing
    Frequency 125 kHz
    Environmental IP55
    Cable Distance
    Wiegand interface: 500 feet (150 m)
    Clock-and-Data interface: 50 feet (15 m)
    Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with
    overall shield or equivalent. Additional conductors may be required for LED or beeper
    UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia,
    New Zealand),
    SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS
    Housing Material UL94 Polycarbonate
    Warranty Lifetime
