Integriti / Inception - Inovonics RF LAN Module

Web ID: 407

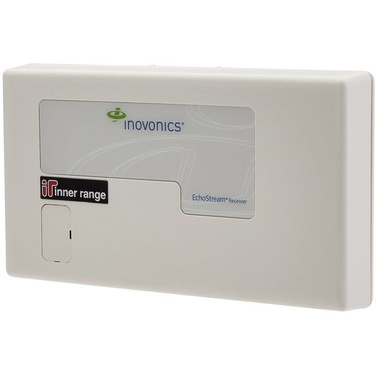

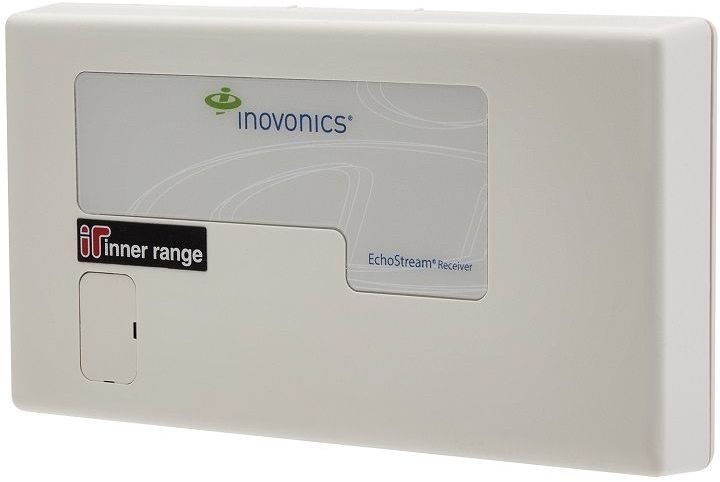

The Integriti/Inception Inovonics RF Expander provides an interface for Inovonics one-way security transmitters such as detectors, universal transmitters and user pendants.
Manufacturer PN: IR-996008
Warranty: 2 Year

Integriti / Inception - Inovonics RF LAN Module 0

Power Supply Input: 11.5V to 14V DC
Current Consumption: 115mA
Installation environment: 0 to 50 degrees Celsius
15% to 85% Relative humidity (non-condensing)
Enclosure dimensions: 165mm (Width) x 92mm (Height) x 28mm (Depth)
Zone Inputs: 32 Wireless zones
Auxiliaries: 4 (Virtual Auxiliaries only. No physical Auxiliaries)
RF Frequency Band: 915-928 MHz (Australia), 921-928 MHz (New Zealand)
For use in Australia and New Zealand only
Integriti Controller Firmware V17 or later required
Inception Controller must be V1.2.1 or later required
