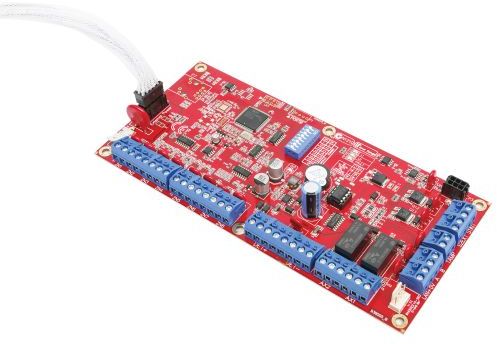

Inner Range Integriti 8 Zone LAN Expander Module PCB & Kit

Web ID: 233

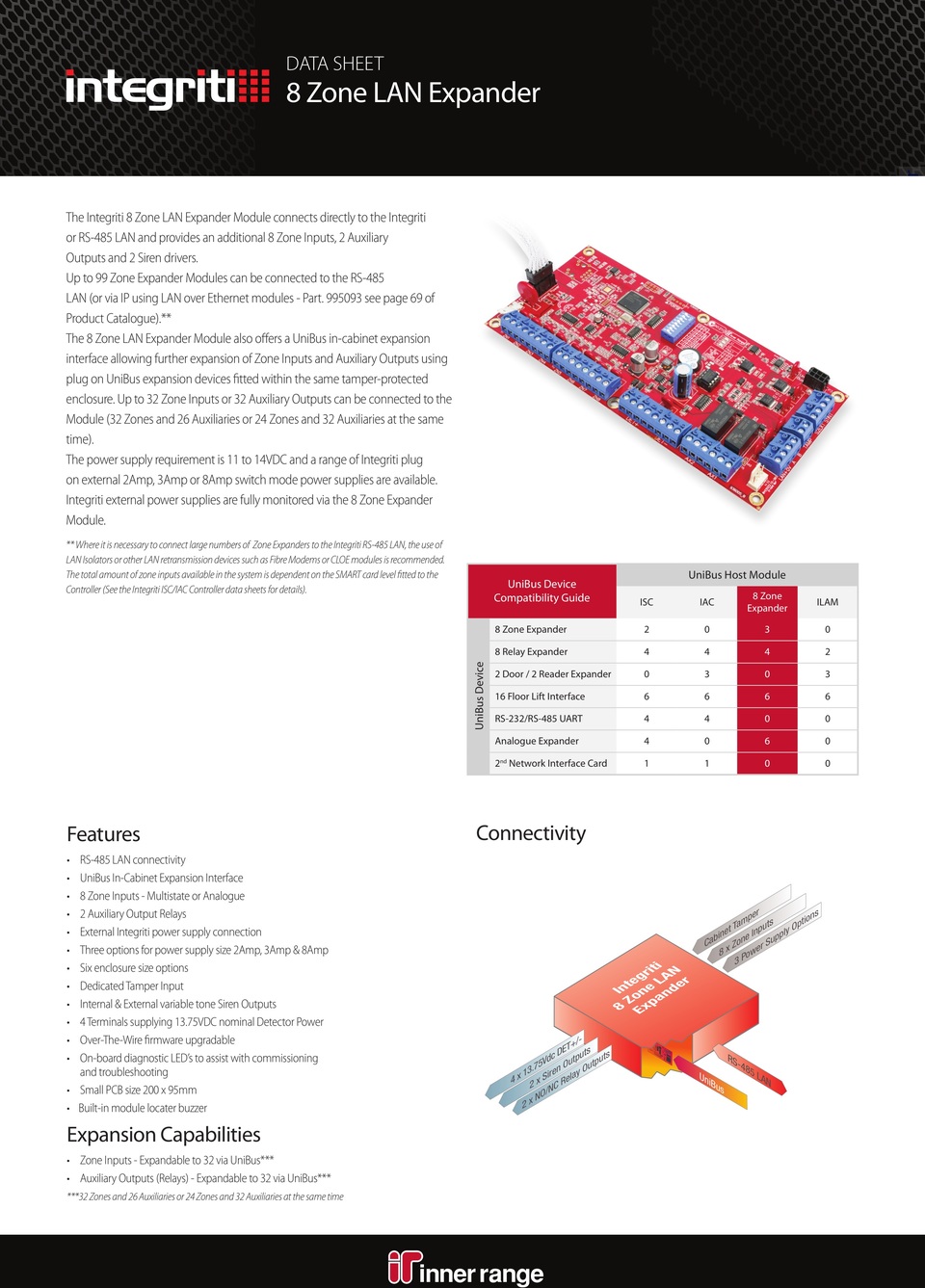

The Integriti 8 Zone LAN Expander Module connects directly to the Integriti ISC Controller's RS-485 LAN and provides an additional 8 Zone inputs and 2 Auxiliary outputs. Up to 99 Zone Expander Modules can be connected to the Integriti RS-485 LAN or via IP LAN if connected with CLOE modules (Part 995093). The 8 Zone LAN Expander Module also offers a UniBus in-cabinet expansion interface allowing further expansion of Zone inputs and Auxiliary outputs using plug on UniBus expansion devices fitted within the same tamper protected enclosure. Up to 32 Zone Inputs or 32 Auxiliary Outputs can be connected to the Module (32 Zones and 26 Auxiliaries or 24 Zones and 32 Auxiliaries at the same time). The power supply requirement is 11 to 14VDC and a range of Integriti plug on external 2Amp, 3Amp or 8Amp switchmode power supplies are available. Integriti external power supplies are fully monitored via the 8 Zone Expander Module.
Manufacturer PN: IR-996005PCB&K
Warranty: 2 Year
Manufacturer Website

Inner Range Integriti 8 Zone LAN Expander Module PCB & Kit 0Inner Range Integriti 8 Zone LAN Expander Module PCB & Kit 1

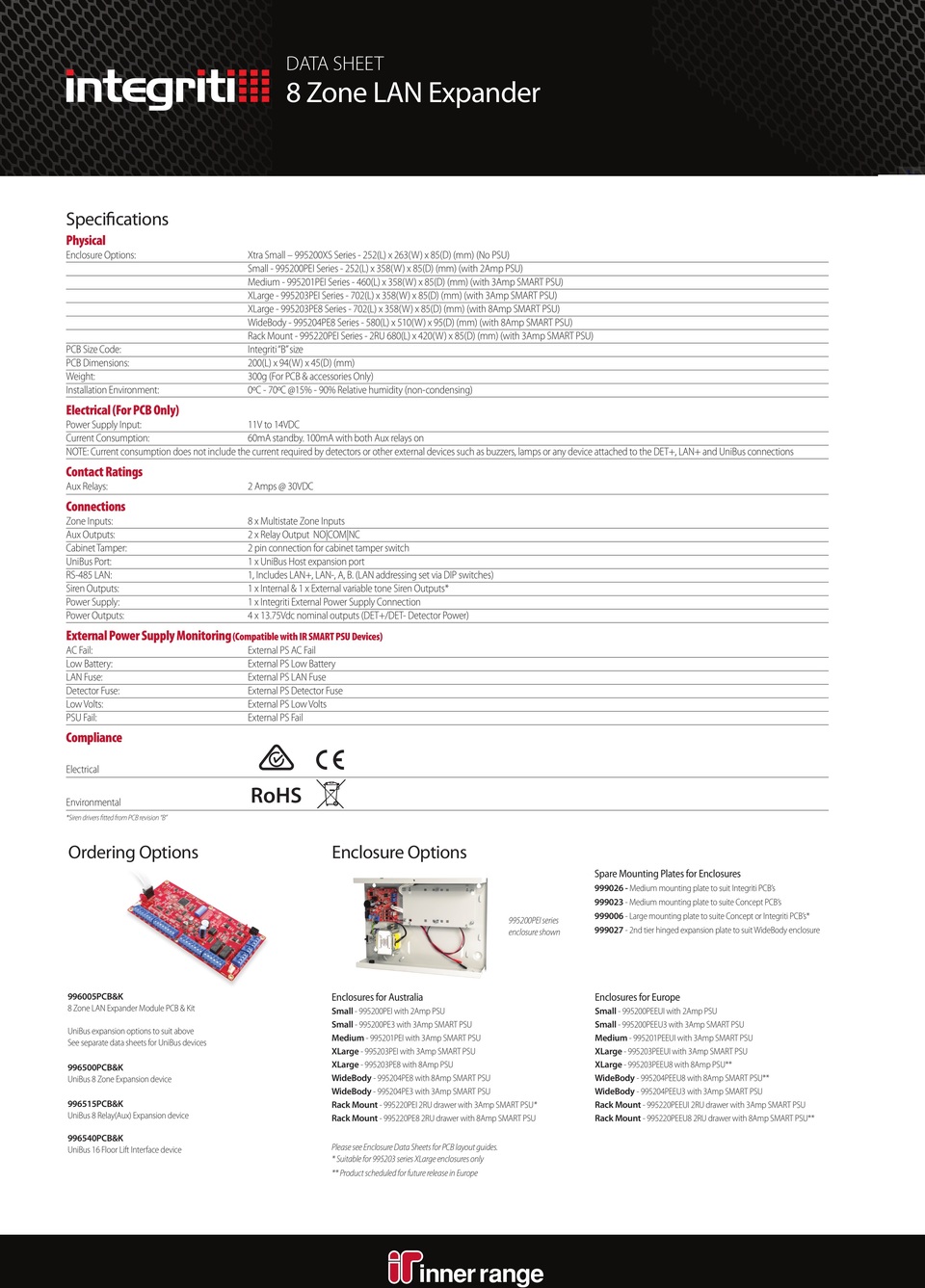

Specifications
Physical
Enclosure Options: Xtra Small – 995200XS Series - 252(L) x 263(W) x 85(D) (mm) (No PSU)
Small - 995200PEI Series - 252(L) x 358(W) x 85(D) (mm) (with 2Amp PSU)
Medium - 995201PEI Series - 460(L) x 358(W) x 85(D) (mm) (with 3Amp SMART PSU)
XLarge - 995203PEI Series - 702(L) x 358(W) x 85(D) (mm) (with 3Amp SMART PSU)
XLarge - 995203PE8 Series - 702(L) x 358(W) x 85(D) (mm) (with 8Amp SMART PSU)
WideBody - 995204PE8 Series - 580(L) x 510(W) x 95(D) (mm) (with 8Amp SMART PSU)
Rack Mount - 995220PEI Series - 2RU 680(L) x 420(W) x 85(D) (mm) (with 3Amp SMART PSU)
PCB Size Code: Integriti “B” size
PCB Dimensions: 200(L) x 94(W) x 45(D) (mm)
Weight: 300g (For PCB & accessories Only)
Installation Environment: 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing)
Electrical (For PCB Only)
Power Supply Input: 11V to 14VDC
Current Consumption: 60mA standby. 100mA with both Aux relays on
NOTE: Current consumption does not include the current required by detectors or other external devices such as buzzers, lamps or any device attached to the DET+, LAN+ and UniBus connections
Contact Ratings
Aux Relays: 2 Amps @ 30VDC
Connections
Zone Inputs: 8 x Multistate Zone Inputs
Aux Outputs: 2 x Relay Output NO|COM|NC
Cabinet Tamper: 2 pin connection for cabinet tamper switch
UniBus Port: 1 x UniBus Host expansion port
RS-485 LAN: 1, Includes LAN+, LAN-, A, B. (LAN addressing set via DIP switches)
Siren Outputs: 1 x Internal & 1 x External variable tone Siren Outputs*
Power Supply: 1 x Integriti External Power Supply Connection
Power Outputs: 4 x 13.75Vdc nominal outputs (DET+/DET- Detector Power)
External Power Supply Monitoring (Compatible with IR SMART PSU Devices)
AC Fail: External PS AC Fail
Low Battery: External PS Low Battery
LAN Fuse: External PS LAN Fuse
Detector Fuse: External PS Detector Fuse
Low Volts: External PS Low Volts
PSU Fail: External PS Fail
