Hikvision DS-KM8301 Master Station, 7-inch TFT LCD

Web ID: 74

Hikvision DS-KM8301 Master Station, 7-inch TFT LCD, display resolution: 1024 * 600, camera resolution 640*480,10/100/1000Mbps Ethernet, USB interface
Manufacturer PN: DS-KM8301
Warranty: 3 Year
Manufacturer Website

$1179

DS-KM8301
Master Station, 7-inch TFT LCD

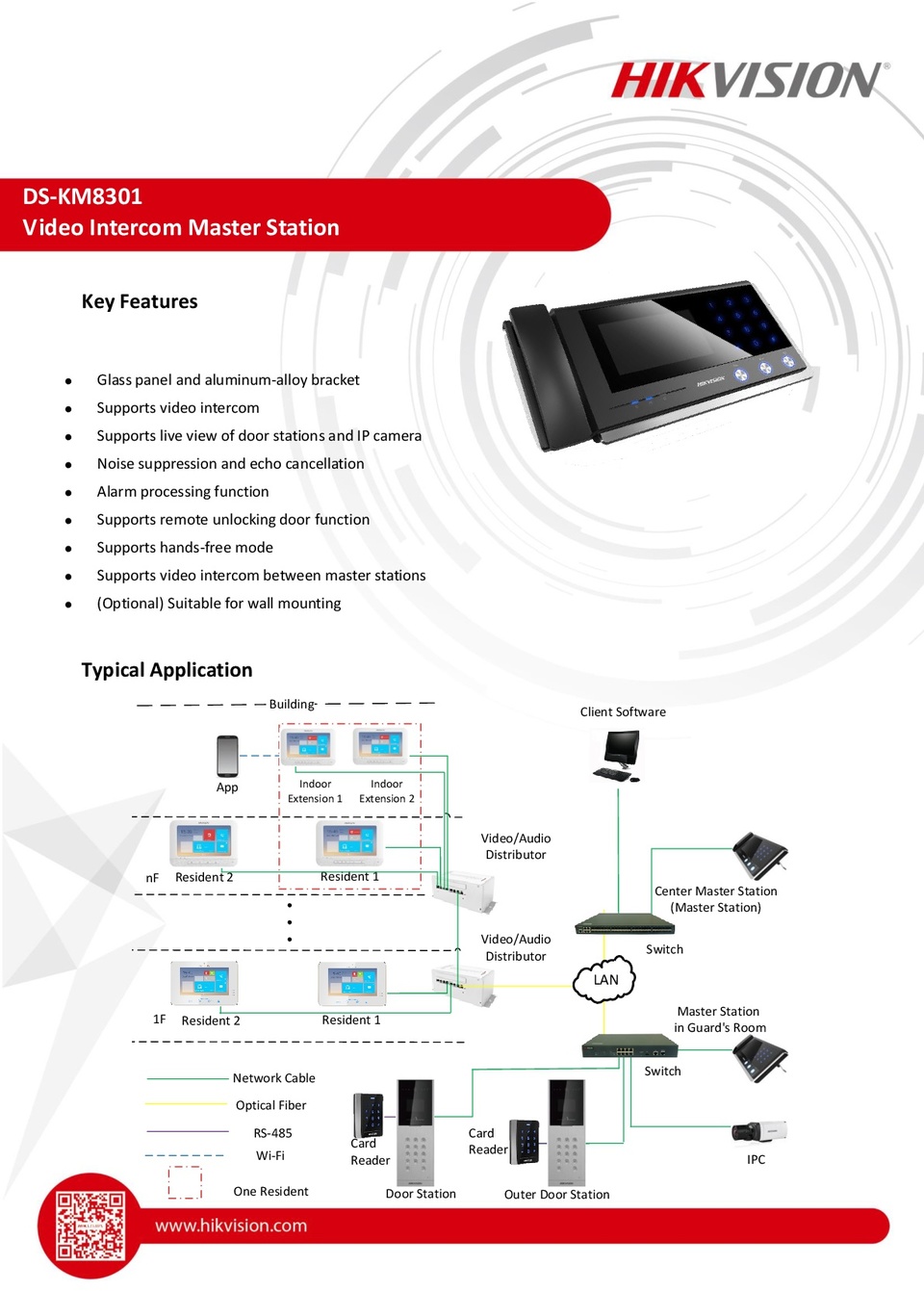

Key Features

  • Glass panel and aluminum-alloy bracket
  • Supports video intercom
  • Supports live view of door stations and IP camera
  • Noise suppression and echo cancellation
  • Alarm processing function
  • Supports remote unlocking door function
  • Supports hands-free mode
  • Supports video intercom between master stations
  • Optional) Suitable for wall mounting

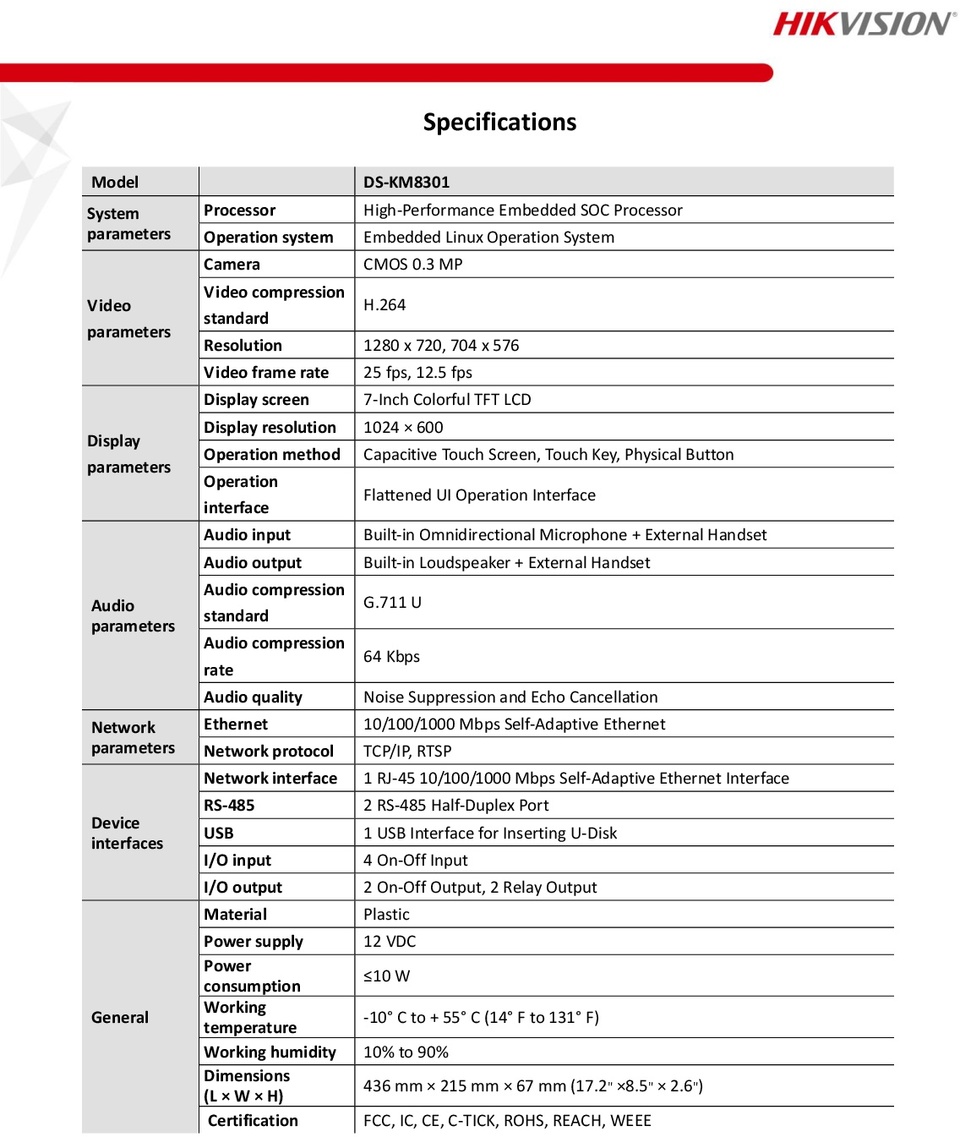

System Parameters
Processor: | High-Performance Embedded SOC Processor
Operation System: | Embedded Linux Operation System
Video Parameters
Camera: | CMOS 0.3 MP
Video Compression Standard: | H.264
Resolution: | 1280 x 720, 704 x 576
Video frame rate: | 25 fps, 12.5 fps
Display Parameters
Display Screen: | 7-Inch Colorful TFT LCD
Display Resolution: | 1024 × 600
Operation Method: | Capacitive Touch Screen, Touch Key, Physical Button
Operation interface: | Flattened UI Operation Interface
Audio Parameters
Audio Input: | Built-in Omnidirectional Microphone + External Handset
Audio Output: | Built-in Loudspeaker + External Handset
Audio Compression Standard: | G.711 U
Audio Compression Rate: | 64 Kbps
Audio Quality: | Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet
Network Protocol: | TCP/IP, RTSP

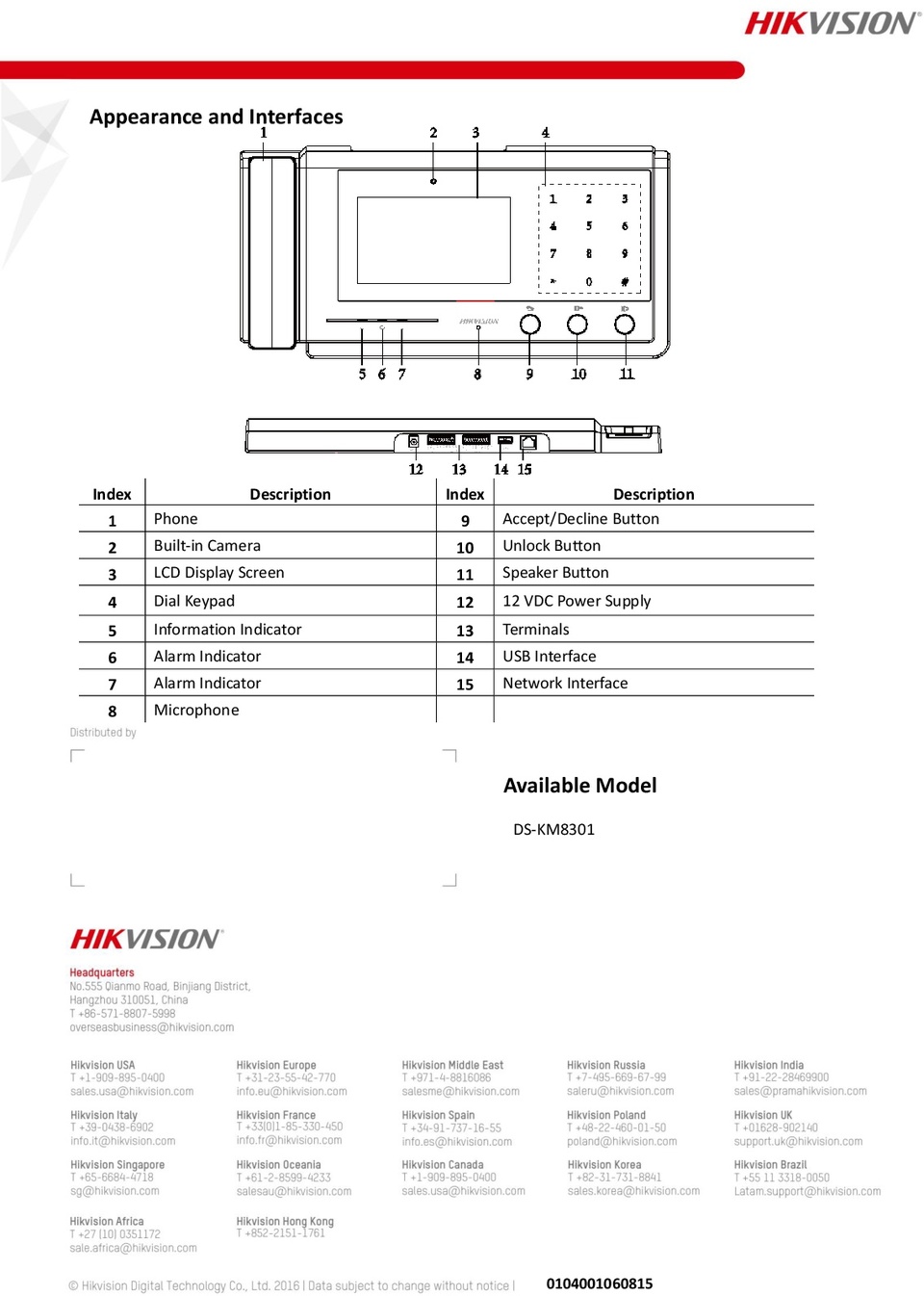

Device Interfaces
Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
RS-485: | 2 RS-485 Half-Duplex Port
I/O Input: | 4 On-Off Input
I/O Output: | 2 On-Off Output, 2 Relay Output
General
Material: | Plastic
Power Supply: | 12 VDC
Power Consumption: | ≤10 W
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature: | -10° C to + 55° C (14° F to 131° F)
Working Humidity: | 10% to 90%
Dimensions(L × W × H): | 436 mm × 215 mm × 67 mm (17.2" ×8.5" × 2.6")
