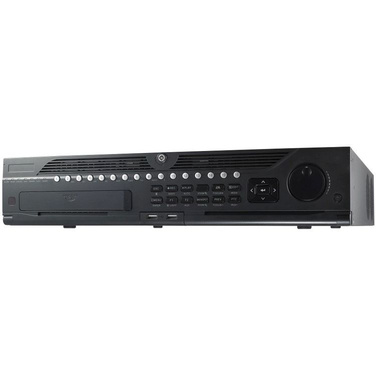

Hikvision DS-9632NI-I8 32CH IP NVR

Web ID: 116

Hikvision DS-9632NI-I8 Network Video Recorder, Supports Up To 32 IP Cameras, 2 LAN Interfaces, Raid Compatible, No Hard Drives Included
Manufacturer PN: DS-9632NI-I8
Warranty: 3 Year
Manufacturer Website

$1985SAVE $198

DS-9632NI-I8
32CH IP NVR

Key Features

  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 2-ch HDMI, 2-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • Up to 32 IP cameras can be connected with 320M incoming bandwidth
  • Up to 8 SATA interfaces
  • Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
Video/Audio Input
Two-way audio input:   1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:   32-ch
Network
Incoming bandwidth:   320Mbps or 200Mbps(when RAID is enabled)
Outgoing bandwidth:   256Mpbs or 200Mbps(when RAID is enabled)
Remote connection:   128
Video/Audio Output
HDMI/VGA output:   2-ch, resolution:
HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution:   12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:   2-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback:   16-ch
Decoding
Live view / Playback:   12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:   4-ch@4K, 16-ch@1080p
Hard Disk
SATA:   8 SATA interfaces for 8 HDDs
Interface Type:   1 eSATA interface
Capacity:   Up to 6TB capacity for each HDD
Disk array
Array type:   RAID0, RAID1, RAID5, RAID6, RAID10
Number of array:   5
External Interface
Network Interface:   2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface:   RS-232, RS-485, Keyboard
USB Interface:   Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power Supply:   100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):   ≤ 45 W
Working Temperature:   -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:   10 % ~ 90 %
Chassis:   19-inch rack-mounted 2U chassis
Dimensions:   445 × 496 × 146 mm (17.5 × 19.5 × 5.7")
Weight(without HDD):   ≤ 12.5 Kg (27.6 lb)
