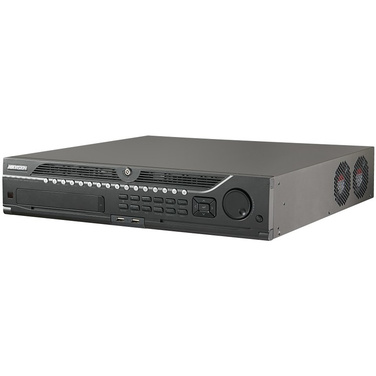

Hikvision DS-9032HUHI-K8 DVR - 32 HD-TVI plus 32 IP Cameras - Includes 3TB Hard Drive

Hikvision DS-9032HUHI-K8 DVR - 32 HD-TVI plus 32 IP Cameras - Includes 3TB Hard Drive

Web ID: 924

Part of Hikvision's 'TVI4.0' series of digital video recorders, the DS-9032HUHI-K8 is a 32 channel DVR that has been designed to support up to 5MP TVI cameras at 12 frames per second over coaxial cable. Offering compatibility with multiple video formats ranging from standard definition analogue, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI or up to sixty-four 12MP IP cameras. This DVR supports H.265/H.265+ intelligent video compression technology which dramatically reduces bandwidth and storage requirements by up to 50 percent. Additionally, this machine provides 32 BNC input interfaces and is capable of providing 4K(UHD) video outputs via HDMI. Other benefits of TVI 4.0 include: the absence of video delay in live viewing, bi-directional signaling, and long video transmission range of up to 800m over coaxial cable. All of this adds up to an incredible breakthrough in the evolution of analogue video transmission.
Manufacturer PN: DS-9032HUHI-K8
Warranty: 3 Year
Manufacturer Website

$3794
 Add cart
Got a Question?

DS-9032HUHI-K8
DVR - 32 HD-TVI plus 32 IP Cameras - Includes 3TB Hard Drive

Key Features

  • 32 channel HD-TVI 4.0 DVR or up to 64 channel IP - 12MP max
  • H.265/H.265+ encoding
  • 5MP at 12fps, 4MP at 15fps, 3MP at 18fps, 2MP at 25fps
  • Up to 800m for 1080p and 1200m for 720p
  • 8x HDD bays
  • HDMI output up to 4K resolution
  • VGA and CVBS output
  • Mobile application and PC client P2P - quick remote access setup
Video/Audio Input
Audio Input:   16-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   32-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
Audio Compression:   G.711u
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI2 Output:   1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output:   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:   8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:   Main stream:
8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-10 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
Audio Output:   2-ch, RCA (Linear, 1 kΩ)
Dual Stream:   Support
Synchronous Playback:   16-ch
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   8 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
e-SATA Interface:   1 eSATA interface
Disk Array
Array Type:   RAID0, RAID1, RAID5, RAID6,RAID10
External Interface
Network Interface:   2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface:   2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface:   1 RS-232 serial interface
1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input:   16-ch
Alarm Output:   8-ch
General
Power Supply:   100 to 240 VAC
Consumption:   ≤ 74W(without hard disks)
Working Temperature:   -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:   10% to 90%
Dimensions:   442 × 470 × 90 mm (17.4 × 18.5 × 3.5 inch)
Weight:   ≤ 10 kg (22.0 lb)
