Hikvision DS-7732NI-I4/16P 32CH IP NVR - Includes 3TB Hard Drive

Web ID: 48

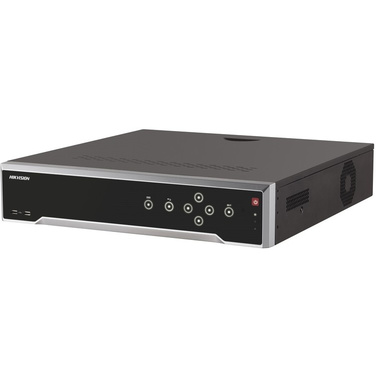

Hikvision's DS-7732NI-I4/16P is a 32 channel network video recorder with 16 embedded plug and play PoE ports. Part of Hikvision's I Series NVR range, it houses a 4-core processor and supports H.265 intelligent compression which aims to reduce bandwidth and storage requirements by up to 50%. Additionally, this NVR combines multiple advanced technologies such as audio and video decoding technology, network technology and intelligent technology, all contributing factors to the I Series range running smoother than previous generations. Featuring 16 PoE network interfaces for easy plug and play setup and capable of 4K(UHD) video output via HDMI and 1080P via VGA, this NVR supports up to 12MP resolution recording. This high performance and reliable unit is flexible and can be installed for medium-sized commercial installations where a complete HD surveillance experience is required.
Manufacturer PN: DS-7732NI-I4/16P
Warranty: 3 Year
Manufacturer Website

$1277

DS-7732NI-I4/16P
32CH IP NVR - Includes 3TB Hard Drive

Key Features

  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160)resolution
  • 16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
  • Up to 4 SATA interfaces
  • Plug & Play with up to 16 independent PoE network interfaces/li>
  • Support dual-os to ensure high reliability of system running
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
  • 3 year Warranty And Support
Video/Audio Input
IP video input: | 32-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 256Mbps
Outgoing bandwidth: | 256Mpbs
Remote connection: | 128
Video/Audio Output
HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback: | 16-ch
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 4-ch@8MP,16-ch@1080P
Hard Disk
SATA: | 4 SATA interfaces for 4HDDs
Capacity: | Up to 6TB capacity for each HDD
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: | RS-232; RS-485;
USB Interface: | Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: | 16-ch
Alarm Out: | 4-ch
POE
Interface: | 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power: | 200W
Supported Standard: | AF and AT
General
Power Supply: | 100 to 240 VAC
Consumption(without hard disk and POE): | ≤20 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 19-inch rack-mounted 1.5U chassis
Dimensions: | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8")
Weight(without HDD): | ≤ 5 Kg (11 lb)
