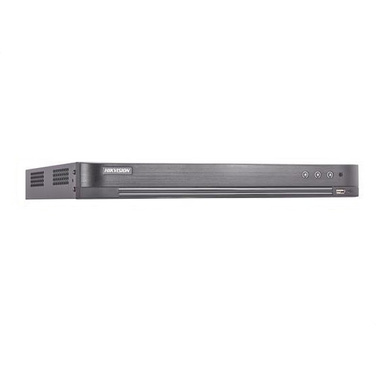

Hikvision DS-7216HUHI-K2 16CH HD-TVI DVR - Includes 3TB Hard Drive

Web ID: 123

Part of Hikvision's 'TVI4.0' series of digital video recorders, the DS-7216HUHI-K2 is a 16 channel DVR that has been designed to support up to 5MP TVI cameras at 12 frames per second over coxial cable. Offering compatibility with multiple video formats ranging from standard definition analogue, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI and up to two 6MP IP, this DVR supports H.265/H.265+ intelligent video compression technology which dramatically reduces bandwidth and storage requirements by up to 50%. Additionally, this machine provides 16 BNC input interfaces and is capable of providing 4K(UHD) video outputs via HDMI. Other benefits of TVI 4.0 include: The absence of video delay in live viewing, bi-directional signaling, and long video transmission range of up to 800m over coaxial cable. All of this adds up to an incredible breakthrough in the evolution of analogue video transmission.
Manufacturer PN: DS-7216HUHI-K2
Warranty: 3 Year
Manufacturer Website

$853

DS-7216HUHI-K2
16CH HD-TVI DVR - Includes 3TB Hard Drive

Key Features

  • 16 Channel HD-TVI 4.0 DVR
  • Up to 2 channel IP - 6MP max
  • H.265/H.265+ encoding
  • 5MP@12fps, 4MP@15fps, 3MP@18fps, 2MP@ 25fps
  • Up to 800m for 1080p and 1200m for 720p
  • 2x HDD Bays
  • HDMI output up to 1080P resolution
  • VGA and CVBS output
  • Mobile application and PC client
  • P2P - quick remote access setup
Video/Audio Input
Audio Input:   16-ch
Analog and HD-TVI video input:   16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Frame Rate:   Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-10 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   16-ch
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type:   2 SATA Interfaces
External Interface
Network Interface:   1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:   1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:   1; standard RS-485 serial interface, half-duplex
Alarm Input:   16-ch
Alarm Output:   4-ch
General
Power Supply:   12 VDC
Consumption:   ≤ 25W(without hard disks)
Working Temperature:   -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:   10% to 90%
Dimensions:   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:   ≤ 2 kg (4.4 lb)
