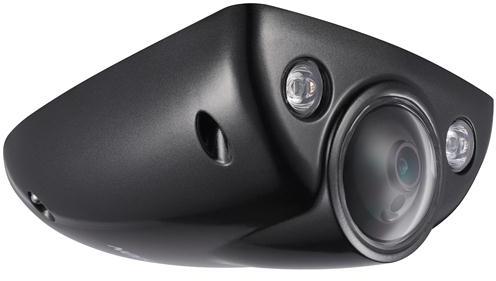

Hikvision DS-2CD6520ET-IO 2MP IP Mobile Camera 6mm

Web ID: 82

Hikvision DS-2CD6520ET-IO 2MP 1080P Mobile IP Camera 0lux with IR, 6mm fixed lens, FoV: 46, 3-axis adjustment, 3D DNR, DWDR, H.264/MJPEG, 1920x1080 up to 30fps, DC12V & PoE, Up to 30m IR range, IP68 & IK10 protection, EN50155, EN50121, Intensified mechanic design, Built-in Heater and demisting. (for indoor and outdoor use)
Manufacturer PN: DS-2CD6520ET-IO
Warranty: 3 Year
Manufacturer Website

Camera
Image Sensor: | 1/3" CMOS
Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
0.028Lux @(F2.0,AGC ON) ,0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Lens: | 6mm@F2.0
Angle of view: 46°
Lens Mount: | M12
Adjustment Range: | Pan: -15°-15°, Tilt: 0~30°, Rotation: -90°-90°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | Digital WDR
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG
H.264 code profile: | Baseline Profile / Main Profile / High Profile
Video bit rate: | 32Kbps~8Mbps
Dual Stream: | Yes
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720)
60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | support
3D DNR: | support
Network
Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
System Compatibility: | ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
General
Operating Conditions: | -30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Power Supply: | 12 V DC ± 10%, PoE (802.3at)
Power Consumption: | 9W MAX
Impact Protection: | IK10
IR Range: | Up to 30m
Dimensions: | 163.7 × 122.5 × 65.1
Weight: | 900 g (1.98 lbs)
