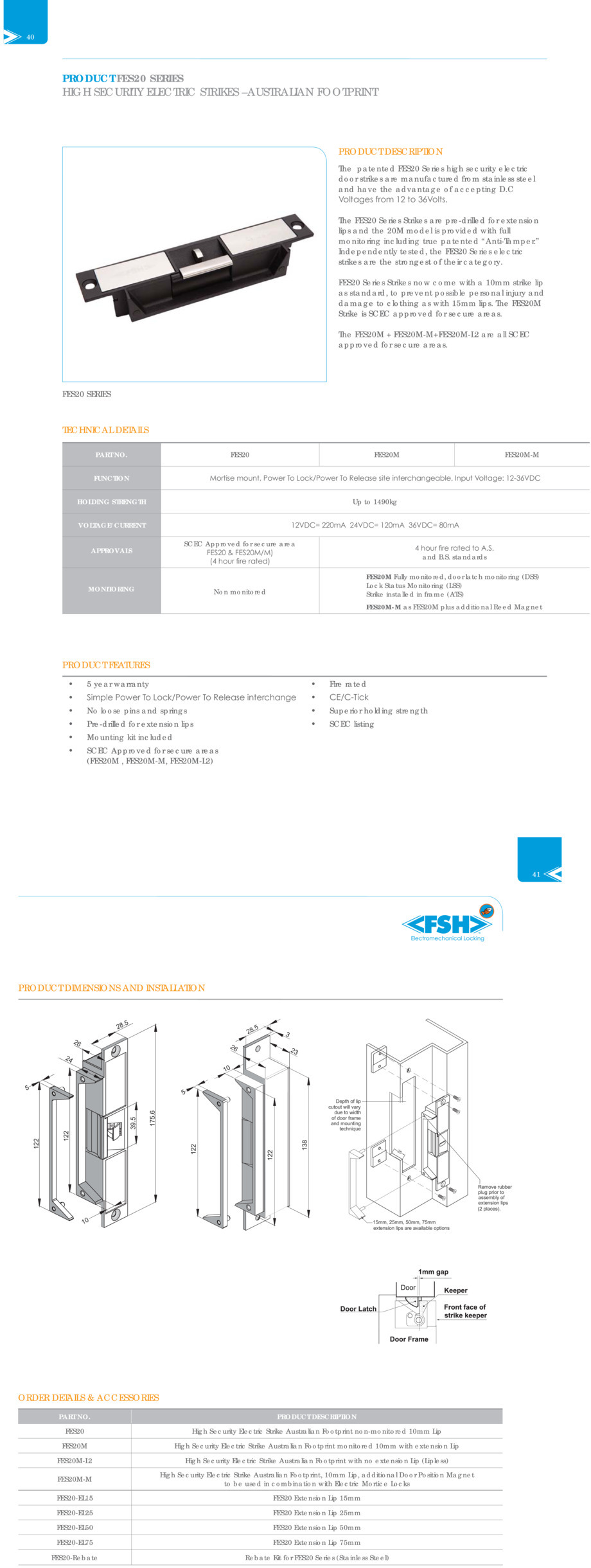

FSH FES20M Electric Strike 12v/24vdc (Monitored)
Web ID: 243
5 year warranty, Simple Power To Lock/Power To Release interchange, No loose pins and springs, Pre-drilled for extension lips, Mounting kit included, SCEC Approved for secure areas, (FES20M, FES20M-M), Fire rated, CE/C-Tick, Superior holding strength, SCEC listing
Manufacturer PN: FES20M
Warranty: 5 Year
Manufacturer Website
PART No. | FES20 | FES20M | FES20M-M |
FUNCTION | Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12-36VDC | Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12-36VDC | Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12-36VDC |
HOLDING STRENGTH | Up to 1490kg | Up to 1490kg | Up to 1490kg |
VOLTAGE/CURRENT | 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA | 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA | 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA |
APPROVALS | 4 hour fire rated | SCEC Approved for secure area 4 hour fire rated to A.S. and B.S. standards | SCEC Approved for secure area 4 hour fire rated to A.S. and B.S. standards |
MONITORING | Non monitored | FES20M Fully monitored, door latch monitoring (DSS) Lock Status Monitoring (LSS) Strike installed in frame (ATS) | FES20M-M as FES20M plus additional Reed Magnet |
