FSH FES10 Electric Strike 12v/24vdc
Web ID: 241
Stainless steel faceplate and keeper, Patented Barbell mechanism for simple change of locking function, Low power consumption, Compatible with door latch depth of up to 15mm, Weather resistant IP56 (FES10 non monitored only), Superior holding strength of up to 1300kg, 5 year warranty, 12 or 24VDC operation, Pre-drilled for extension lips
Manufacturer PN: FES10
Warranty: 5 Year
Manufacturer Website

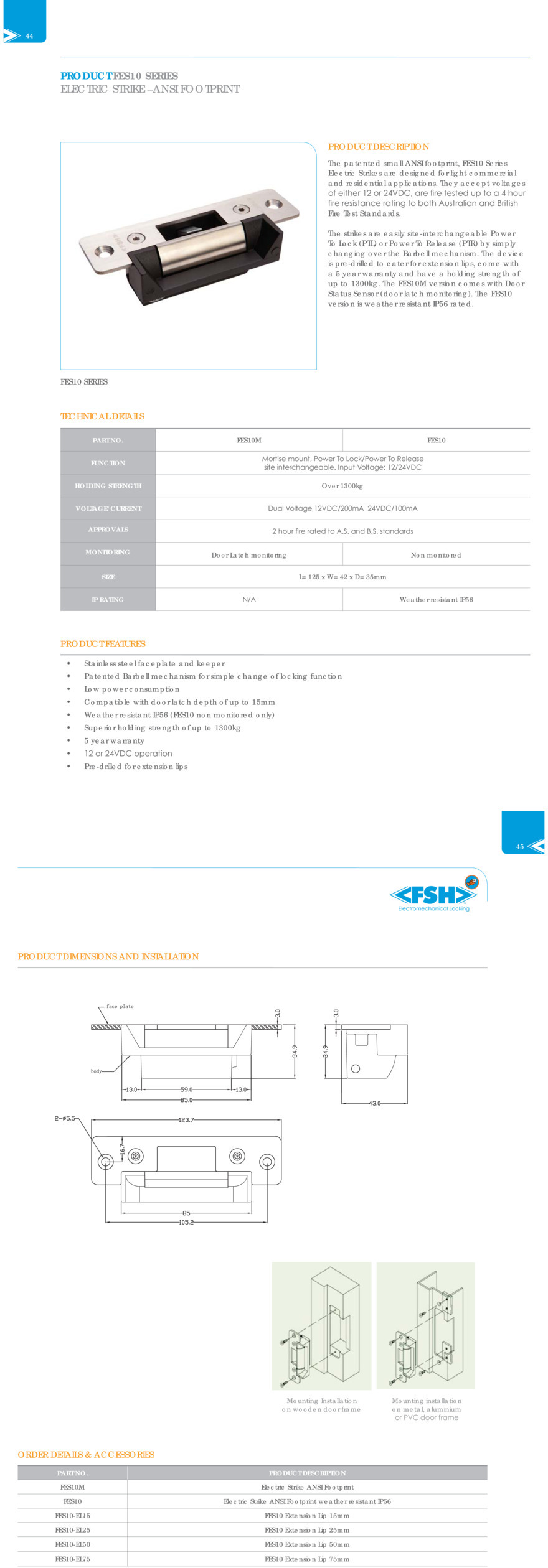

Technical Specification
PART No. | FES10M | FES10 |
FUNCTION | Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12/24VDC | Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12/24VDC |
HOLDING STRENGTH | Over 1300kg | Over 1300kg |
VOLTAGE/CURRENT | Dual Voltage 12VDC/200mA 24VDC/100mA | Dual Voltage 12VDC/200mA 24VDC/100mA |
APPROVALS | 2 hour fire rated to A.S. and B.S. standards | 2 hour fire rated to A.S. and B.S. standards |
MONITORING | Door Latch monitoring | Non monitored |
SIZE | L= 125 x W= 42 x D= 35mm | L= 125 x W= 42 x D= 35mm |
IP RATING | N/A | Weather resistant iP56 |
