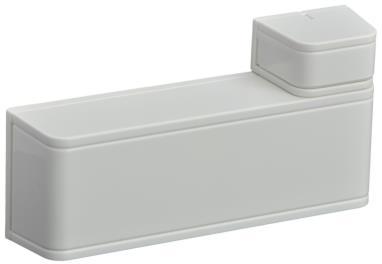

Bosch Radion Ultima Wireless Magnetic Reed Switch & Universal Transmitter

Web ID: 191

Single alarm loop input can be configured for use with virtually any Normally Open or Normally Closed external detector, Integrated magnetic reed switch contact, Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions, Operational up to 5 years using a single user replaceable CR123A lithium battery
Manufacturer PN: RFDW-SM
Warranty: 3 Year
Manufacturer Website

Dimensions:Transmitter 33.02 x 82.55 x 19.5 mm
Dimensions:Magnetic 18.5 mm x 24.5 mm x 12.5 mm

Power/Voltage: One CR123A Lithium battery, 3 VDC
Battery life: Up to 5 years

Temperature: Functional range: -10°C to +49°C UL only: EN 50130-5 Class II only: -10°C to 40°C
Environment Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing
Cover and Wall Tamper Switch: Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the wall.
Maximum distance between sensor and magnet: <12.7 mm (1/2 in) Place the magnet on either side. The base has marks to indicate the positioning of the magnet.
Wire gauge: 0.65 mm (22 AWG) to 1.5 mm (16 AWG)
Frequency: 433.42 MHz
Use: Intended for indoor use.
