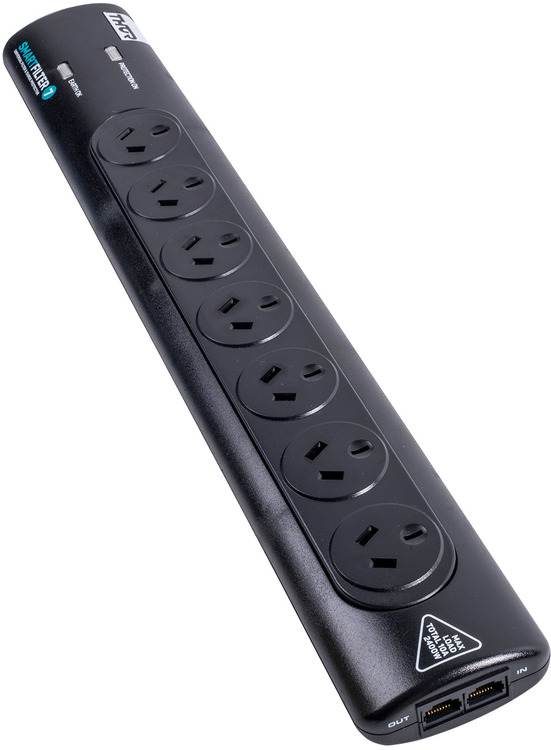

7 Port Thor D1/45 Surge Shield Power Board

Web ID: 426

For high quality power filtering, the D1/45B Smart Filter offers excellent value and is one of the best entry level protectors currently on the market. The 18 separate AC and 5 DC components combine to create powerful protection against sudden power surges and interferences caused by electrical equipment such as appliances, air conditioners, vacuum cleaners, hair dryers, and other electronics that use a motor. All of our products including the D1/45B Smart Filter are designed right here in Australia by our experienced team. We employ strict quality control on our range of surge protectors and other products to. The importance of protecting your electrical equipment. Our products do exactly what they are designed for. Each product has been individually engineered to high performance levels.
Manufacturer PN: D1/45B
Warranty: 5 Year
Manufacturer Website

$159
7 Port Thor D1/45 Surge Shield Power Board 0
Supply Voltage 240/Vac 50/Hz
Maximum Current Rating 10amps/2400 W (Va)
Clamping Voltage 275Vac
Reaction Time Less than 1 Nano Sec
Maximum Transient Spike Impulse Current (AMPS) 156,000 amps or 39,000 amps using UL1449 Std
Maximum Energy Dissipation (Joules) 4588 Joules or 1550 Joules using UL1449 Std
Protection Modes (all 7 outlets Protects on all 3 conductors) Active/Neutral
Active/Earth
Neutral/Earth
EMI/RFI Noise Reduction Filter Type Entry Level
Total Number of Protected AC Outlets 7 filtered & protected outlets
Internet ready.
Earth Potential Rise Protection (DC)
Earth leakage Range Less than 1 milli amp
Operating conditions Indoor / AC Mains
Operating Temperatures - 10C/+60C
Safety Approval No Q01652
Model No D1/45
Cable length 1.2m
