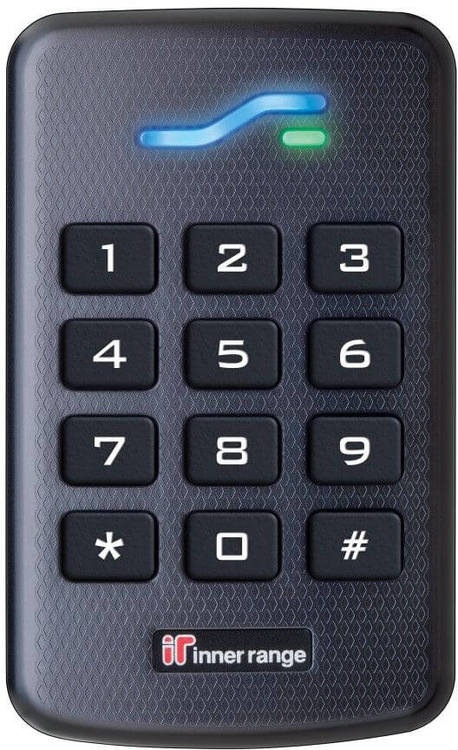

Inner Range SIFER Keypad with inbuilt SIFER Smart Card Reader

Web ID: 503

The SIFER keypad is a combined IP67 rated keypad and smart card reader that allows dual credential card & pin high security access control, (pin only or card only is also supported). The SIFER keypad is a multi-drop RS-485 device that employs 128 bit AES encryption from the card/keypad through to the door module, providing a far superior level of security than that of traditional Wiegand based keypads and card readers. SIFER keypads utilise the Mifare DESfire EV1 card format. As SIFER keypads utilise a superset of the OSDP protocol, the keypads may also be deployed on any system capable of using OSDP. SIFER keypads are connected to the RS-485 reader port for full reader-in and reader-out operation of various Inner Range products.
Manufacturer PN: IR-994725
Warranty: 2 Year

Inner Range SIFER Keypad with inbuilt SIFER Smart Card Reader 0
Inner Range SIFER Keypad with inbuilt SIFER Smart Card Reader 1

  • Secure 128bit AES encryption
  • Encrypted from keypad/card through to access module
  • Supports card & pin, card only or pin only modes
  • Auto dimming backlit silicon rubber keypad
  • Mifare DESfire EV1 card format
  • Water & dust resistant to IP67
  • Vandal resistant (fully potted)
  • Flexible LED colour & function assignment
  • Audible buzzer (can use as DOTL)
  • Multi-drop RS-485 reader LAN
  • Individual reader heartbeat monitoring
  • Integriti auto reader discovery
  • OSDP compatible
  • Support for custom site codes and site specific encryption
  • User programmable cards offer great flexibility for installers
  • Global configuration from Integriti systems (including firmware updates)
  • Small footprint (dimensions: 64 (W) x 106(H) x 18 (D) mm)
