Inner Range Integriti Small Powered Enclosure with 2 Amp Power Supply
Web ID: 325

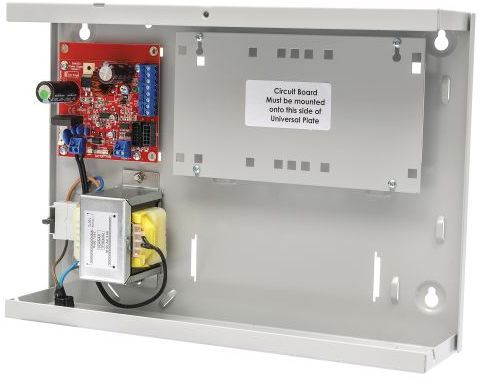

The Small Enclosure (S) is a universal sturdy metal enclosure designed for
general purpose installation of small size Inner Range Integriti, Inception or
Concept equipment. The design allows for a range of Integriti, Inception
or Concept Module PCBs to be fitted. In addition to the Power Supply
PCB, 1 x B size or 2 x C size PCBs may be fitted per enclosure.
A range of powered or non-powered versions are available.
The Small Enclosures low profile side elevation protrudes less than 90mm from
the mounting surface.
Manufacturer PN: I-IR-995200PEI
Warranty: 2 Year
Manufacturer Website
Physical
Enclosure Size 252(L) x 358(W) x 85(D)
Cable Entry Points
Top 4 x 25mm Round Conduit Punch-outs
1 x Power Entry/Antenna Mount Point
Base 2 x 25mm Round Conduit Punch-outs
1 x Power Entry
Back Through wall cable entry behind main plate
Powered Version 2 & 3Amp See the Integriti 2 & 3Amp PSU Datasheets
for PSU Specifications
- Document

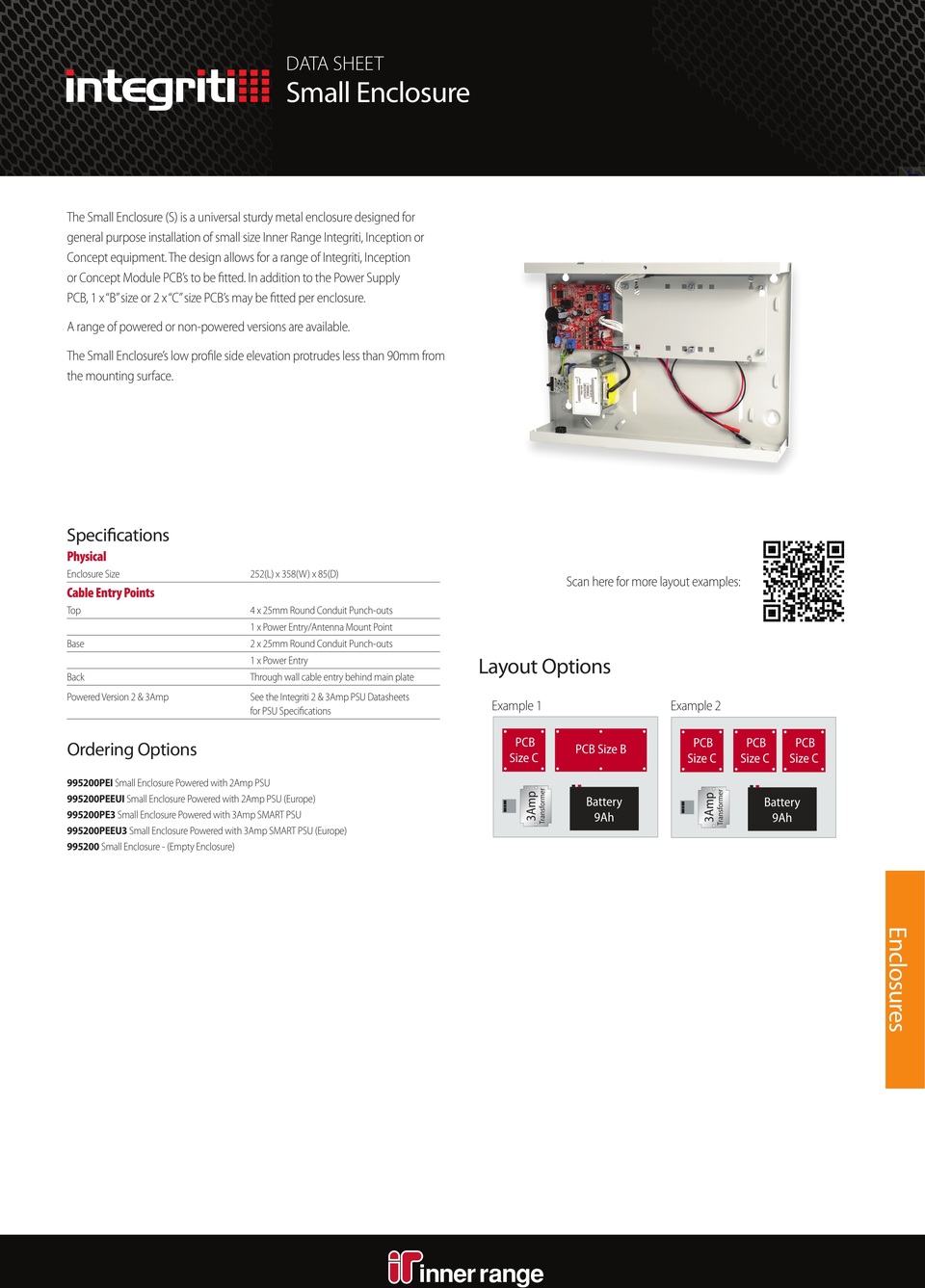

- IR-995200 Datasheet.pdf
