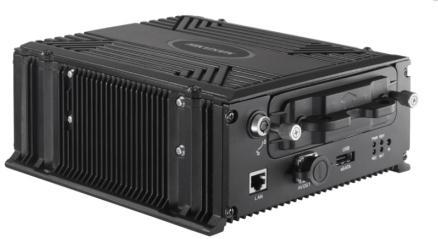

Hikvision DS-M7508HNI/GW/WI 8ch 1080P Mobile NVR
Web ID: 78
Hikvision DS-M7508HNI 8ch Mobile NVR with 8 PoE Ports, GPS, 3G, Wifi & 1TB Hard Drive (Not Installed)
Manufacturer PN: DS-M7508HNI/GW/WI
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
| Video/Audio input | ||
|---|---|---|
| IP camera: | | | 8-ch |
| Audio input: | | | 8-ch |
| Video/Audio output | ||
| Video Output: | | | 1-ch,Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 3-ch,Aviation plug (1.0 Vp-p, 75 Ω); Resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output: | | | 3-ch, Aviation plug (linear level,600 Ω) |
| Encoding/Decoding parameters | ||
| Video compression: | | | H.264 |
| Frame rate: | | | 25 fps (PAL)/30 (NTSC) |
| Audio compression: | | | G.711 |
| Hard Disk | ||
| Type: | | | 2 × 2.5 inch hard disk (HDD/SSD) |
| Capacity : | | | Up to 1 TB for each disk |
| Wireless Network | ||
| 3G/4G Dialing: | | | Optional pluggable 3G(WCDMA)and 4G(FDD-LTE) |
| Wi-Fi: | | | 802.11 b/g/n supported, 2.4GHz |
| Positioning | ||
| Type: | | | Built-in |
| Positioning Module: | | | GPS(Global Positioning System) |
| External interface | ||
| Two-way audio compression: | | | G722 |
| Sensor-in: | | | 4 high/low level signal inputs |
| Alarm input: | | | 3 high/low level signal inputs |
| Network interface: | | | 1 × 10M/100M self-adaptive RJ45 Ethernet interface |
| Serial interface: | | | 1 RS-232, 1 RS-422 |
| USB port: | | | 1 USB2.0 interface on the front panel; |
| CAN Interface: | | | None |
| General | ||
| Operating system: | | | Linux |
| Operating method: | | | Mouse, IR remote control, and Web control |
| Power Supply: | | | Input: 9 to 32 VDC; Output: 12 VDC/1 A, 5 VDC/1 A |
| Consumption: | | | ≤20W |
| Working temperature: | | | -10 °C to +55 °C (14 °F to 131 °F) with enterprise-class HDD -20 °C to +60 °C (-4 °F to 140 °F) with industrial-class HDD Note: for enterprise-class HDD, when the temperature is lower than 0 °C, the heater for HDD is needed |
| Working humidity: | | | 10% to 90% |
| Dimensions (W×D×H): | | | 245.8mm×202mm×86.87mm) |
| Weight (without HDDs/SSDs): | | | ≤ 3.5kg (7.72 lb) (without hard disk) |
