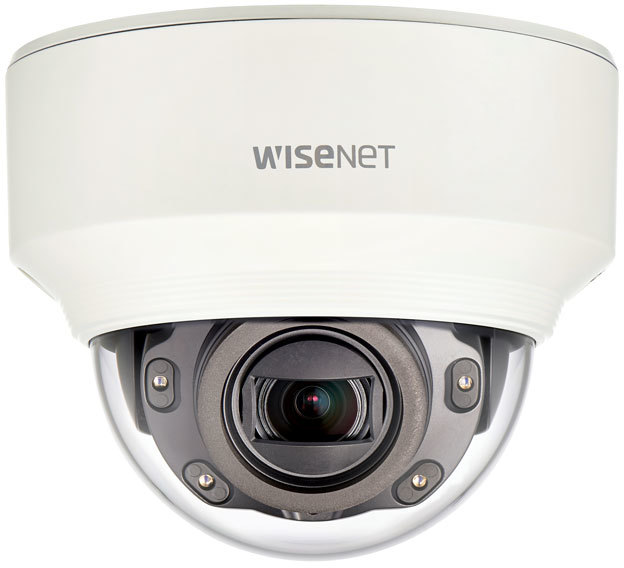

Hanwha Wisenet XND-6080RV 2MP Indoor Dome Camera With IR & Vari Focal Lens

Web ID: 774

With cutting-edge WDR technology, the Hanwha HAN-XND-6080RV conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-6080RV reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XND-6080RV is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XND-6080RV
Warranty: 3 Year
Manufacturer Website

XND-6080RV
Hanwha Wisenet 2MP Indoor Dome Camera With IR & Vari Focal Lens

Key Features

  • Max. 2 megapixel (1920 x 1080) resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStreamII support
  • IR viewable length 30m, IK08
  • LDC support (Lens Distortion Correction)
  • PoE / 12V DC, Bi-directional audio support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XND-6080RV
Series WISENET X SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
HD Yes
Megapixel Yes
Sensitivity lux 0 ~ 0.015
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 9 W ~ 10 W
Focal length 2.8 ~ 12mm
Compression H.265, H.264, MPEG-4, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000s
S/ N (Signal/ Noise) Ratio dB 50
Video Output 1.0 Vpp / 75Ω composite
Zoom Ratio x4.3
Network Properties Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 30 ~ 60 fps
Physical Specifications Dimensions mm: 141 x 113
Weight g: 724
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: < 90
Protection: IK08
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only
Additional info
  • Max. 2megapixel (1920 x 1080) resolution
  • 2.8 ~ 12mm (4.3x) motorised varifocal lens
  • Max. 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
